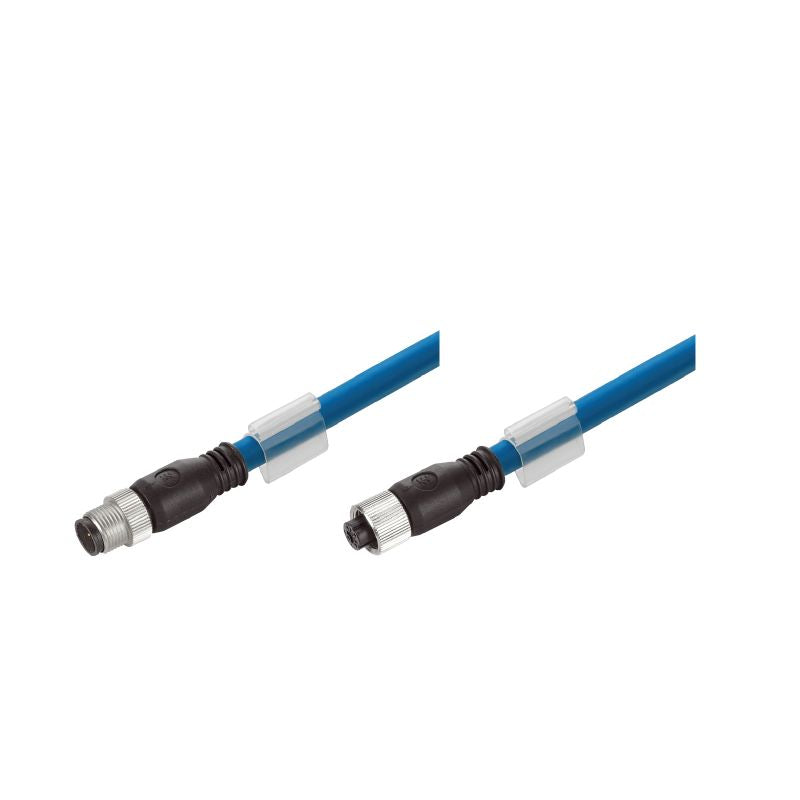

2672350050 - 5m M12 D-Code Cable, IP67 Rated, Polyolefine Build

SKU: SKU: 2672350050 Download PDF

Select a Variant:

2672350050 - 5m M12 D-Code Cable, IP67 Rated, Polyolefine Build

SET THE QTY:

Now $78.71 Web pricing policy

~~BEFORE $0.00~~ Now $78.71 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with this specialized System cable tailored for M12 D-code applications, boasting an IP 67 rating This versatile 5-meter cable includes both straight male and female connectors, ensuring compatibility with various devices Adhering to Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, it’s crafted from durable polyolefine, making it suitable for diverse environments due to its extensive approvals and certifications.

Perfect for your networking needs!.

Features and Benefits:

•Hybrid cable for permanent installation.

•Corrosion resistance according to EN 50267-2-2.

•Halogen-free as per IEC 60754-2.

•Impervious to smoke in accordance with EN 61034-2.

•Tested for fire safety as per NFPA 130 and DIN EN 45545-2.

•Capable of withstanding a test voltage of 1000 V.

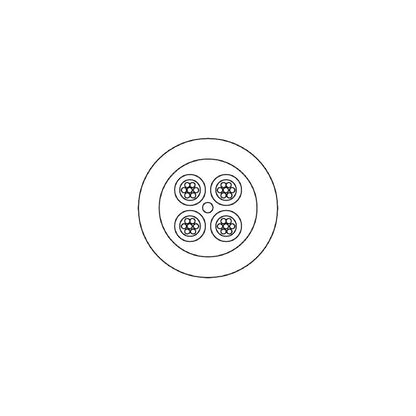

•Number of wires is 4 with a cross-section of 4*AWG 22/7 - 0.32 mm².

Specifications:

Length	5 m

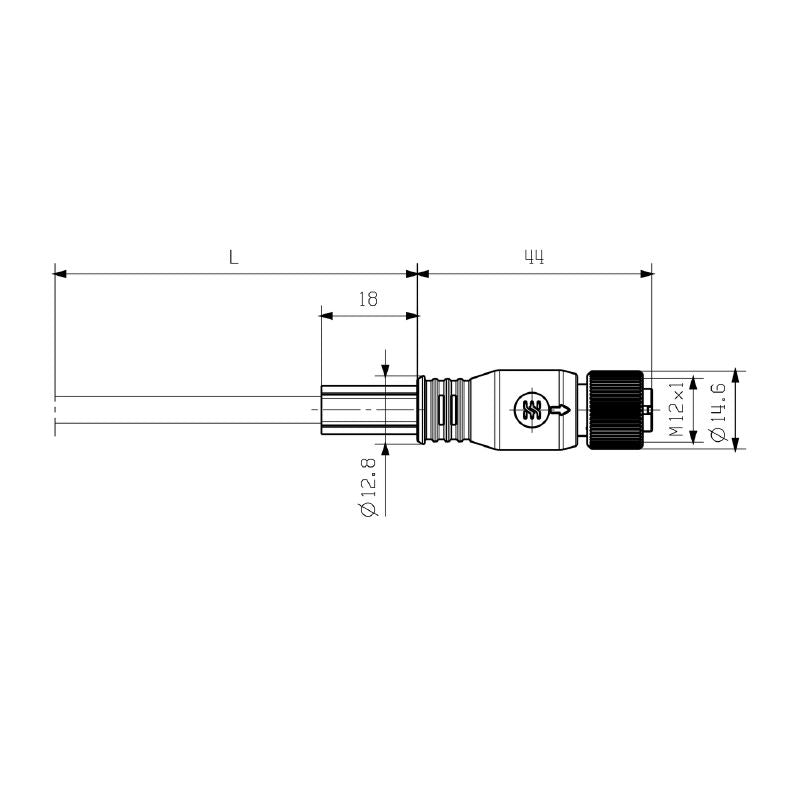

Connector standard	IEC 61076-2-101
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Copper diameter	0.75 mm
Insulation resistance	≥ 5000 MΩ
Nominal voltage	125 V
Shield attenuation up to 1000 MHz	60 dB
Coupling attenuation up to 1000 MHz	90 dB
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	6 *diameter
Wire material	tinned copper
Colour coding	blue, yellow, white, orange
