2672330045 - 4.5m M12 D-Code System Cable, IP67 Rated

2672330045 - 4.5m M12 D-Code System Cable, IP67 Rated

SKU: 2672330045   Download PDF

Select a Variant:
  • 2672330045 - 4.5m M12 D-Code System Cable, IP67 Rated
Qty:
Now $75.35   Web pricing policy
BEFORE   $0.00 Now $75.35 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the reliability of this 45-meter system cable equipped with M12 D-code connectors, offering excellent performance according to IP 67 standards Designed to support Category 5 and Category 5e protocols compliant with ISO/IEC 11801 and TIA T568-B, this cable is constructed from durable polyolefine material, making it a dependable choice for your connectivity needs.

Features and Benefits:

    •Approvals include ROHS compliance.

    •Corrosiveness of fumes standards according to EN 50267-2-2.

    •Fire safety compliance with NFPA 130 and DIN EN 45545-2.

    •Cable is impervious to smoke as per EN 61034-2.

    •Includes multiple color coding: yellow, white, orange, blue.

    •Halogen-free and resistant to oils.

Specifications:

 Length 4.5 m
 Connector standard IEC 61076-2-101
 Operating temperature -40 °C...85 °C
 Nominal voltage 125 V
 Copper diameter 0.75 mm
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Insulation PE
 Insulation cross-section 1.4 mm
 Material sheath Polyolefine
 Number of wires 4
 Sheath diameter, max. 6.8 mm
 Sheath diameter, min. 6.4 mm
 Sheathing material thickness 1 mm

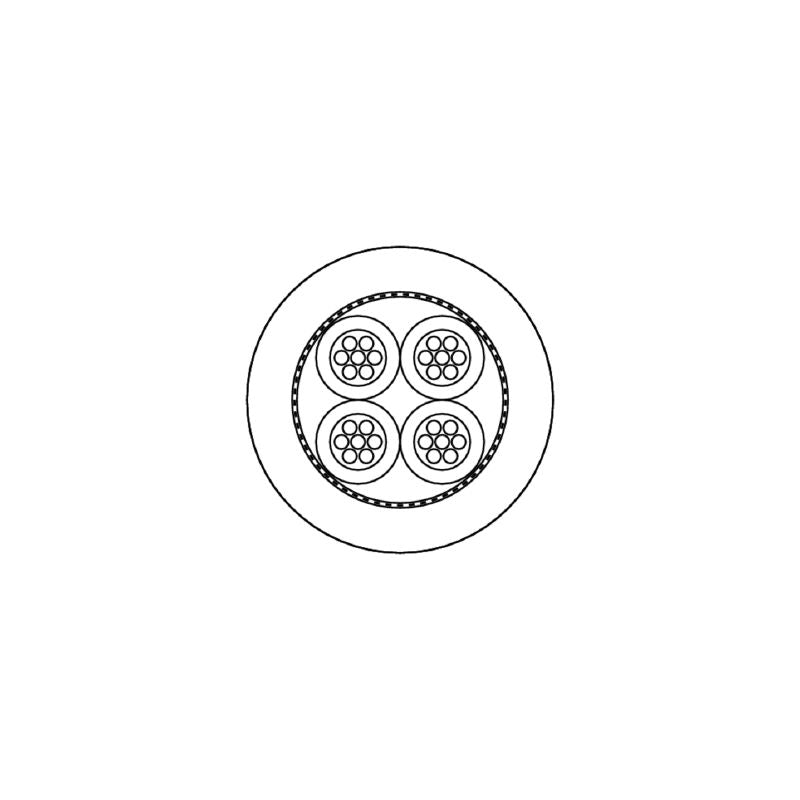

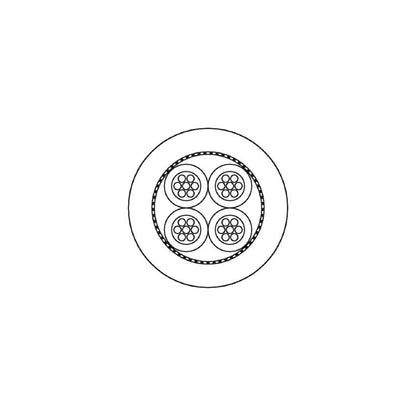

 Shielding SF/UTP
 Wire connection cross section AWG, max. AWG 22
 Wire material tinned copper
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Coupling attenuation up to 1000 MHz 90 dB
 Coupling resistance at 10 MHz / m 8 mΩ
 Shield attenuation up to 1000 MHz 60 dB
 Test voltage: wire-wire-shield 1000 V, effective, 50 Hz, 1 min
 Min. bending radius, once only 15 x cable diameter
 Min. bending radius, repetitive 6 * diameter
 Resistance to oils in accordance with IEC 60811:404

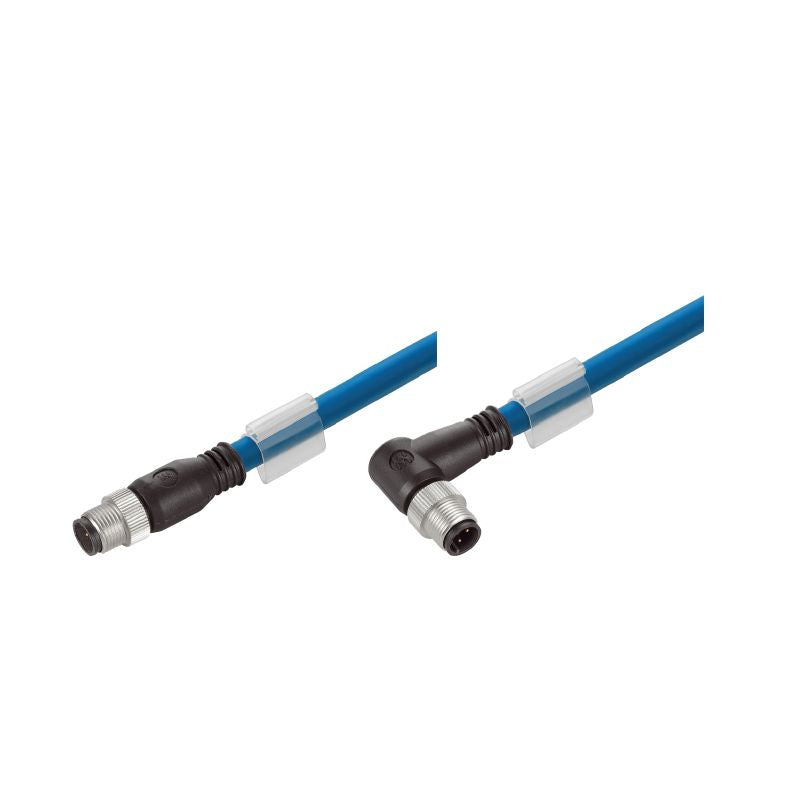

 Plug left M12, D-coded, Number of poles: 4, IP67, male contact, straight, shielded

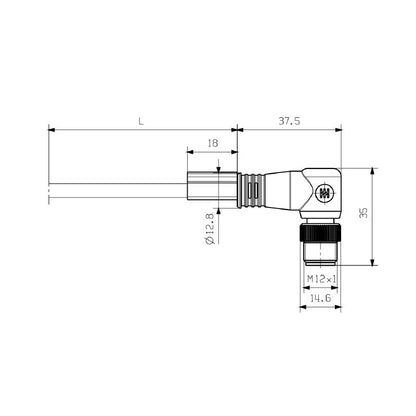

 Plug right M12, D-coded, Number of poles: 4, IP67, male contact, angled 0°, shielded
