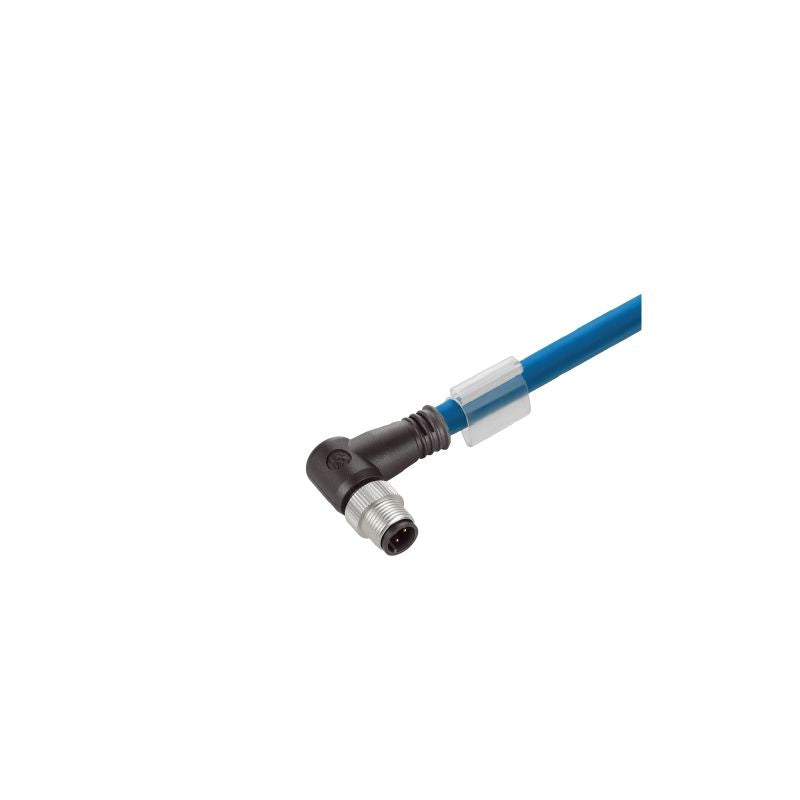

2671900015 - 1.5m M12 D-Code System Cable, IP67 Rated, Cat.5

SKU: SKU: 2671900015 Download PDF

Select a Variant:

2671900015 - 1.5m M12 D-Code System Cable, IP67 Rated, Cat.5

SET THE QTY:

Now $32.64 Web pricing policy

~~BEFORE $0.00~~ Now $32.64 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a versatile system cable featuring an M12 D-code and robust IP 67 protection, extending to 15 meters in length This cable adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, ensuring reliable performance Its durable outer sheath is crafted from polyolefine material, providing excellent resilience Compliant with RoHS regulations and carefully considering LEAD SVHC matters, this cable is designed with environmental safety as a priority, meeting stringent fire safety and eco-friendly requirements.

Features and Benefits:

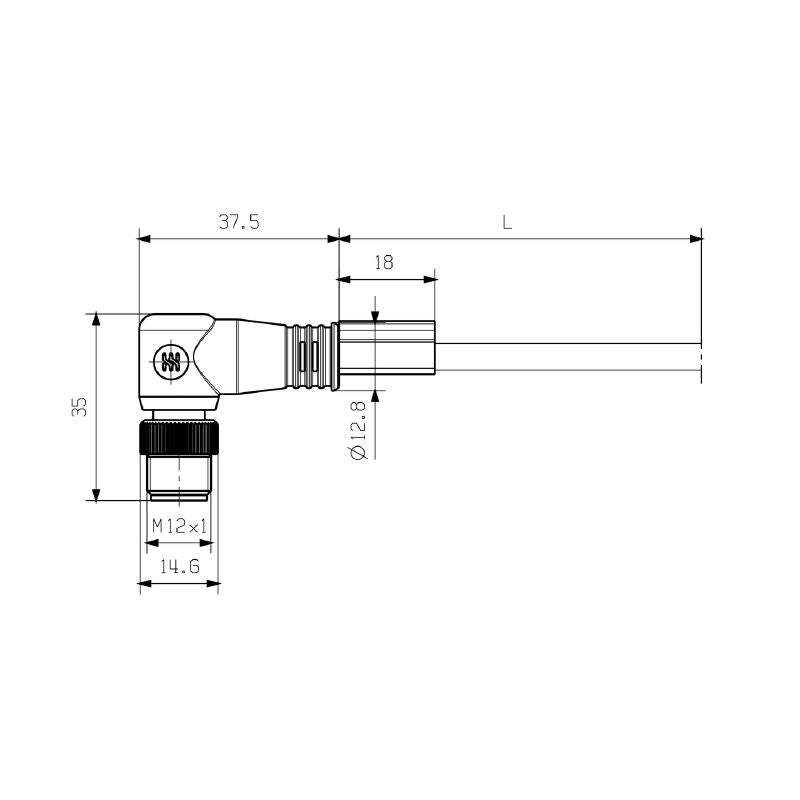

•M12 D-coded connector, angled, IP67 rated.

•Cat.5 compliance for high-speed data performance.

•Polyolefine sheath for durability and environmental compliance.

•Compliant with multiple safety standards such as NFPA 130.

Specifications:

Length	1.5 m
Operating temperature	-40 °C to 85 °C
Nominal voltage	125 V
Copper diameter	0.75 mm

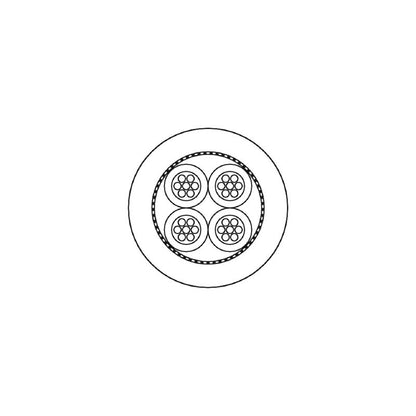

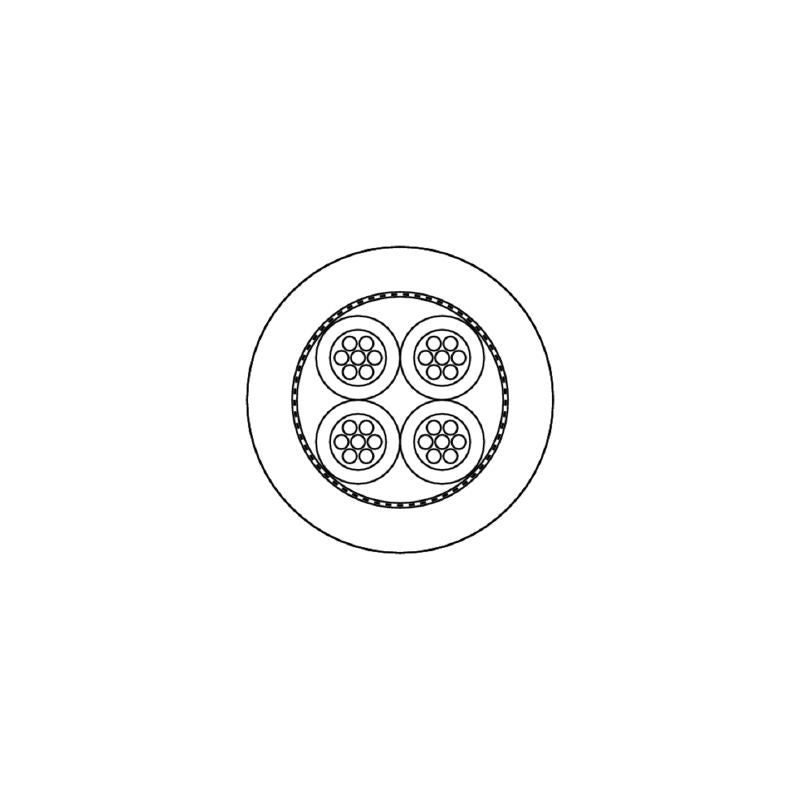

Cross-section	4*AWG 22/7 - 0.32 mm²
Insulation	PE
Material sheath	Polyolefine
Number of wires	4
Sheath diameter	6.4 to 6.8 mm
Shielding	SF/UTP
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Coupling attenuation up to 1000 MHz	90 dB
Coupling resistance at 10 MHz / m	8 mΩ
Shield attenuation up to 1000 MHz	60 dB
Test voltage	1000 V eff, 50 Hz, 1 min
Halogen	No
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	6 * diameter
Resistance to oils	in accordance with IEC 60811:404
