2671890030 - 3m IP67 M12 D-Code Cat.5 System Cable

SKU: SKU: 2671890030 Download PDF

Select a Variant:

2671890030 - 3m IP67 M12 D-Code Cat.5 System Cable

SET THE QTY:

Now $42.71 Web pricing policy

~~BEFORE $0.00~~ Now $42.71 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

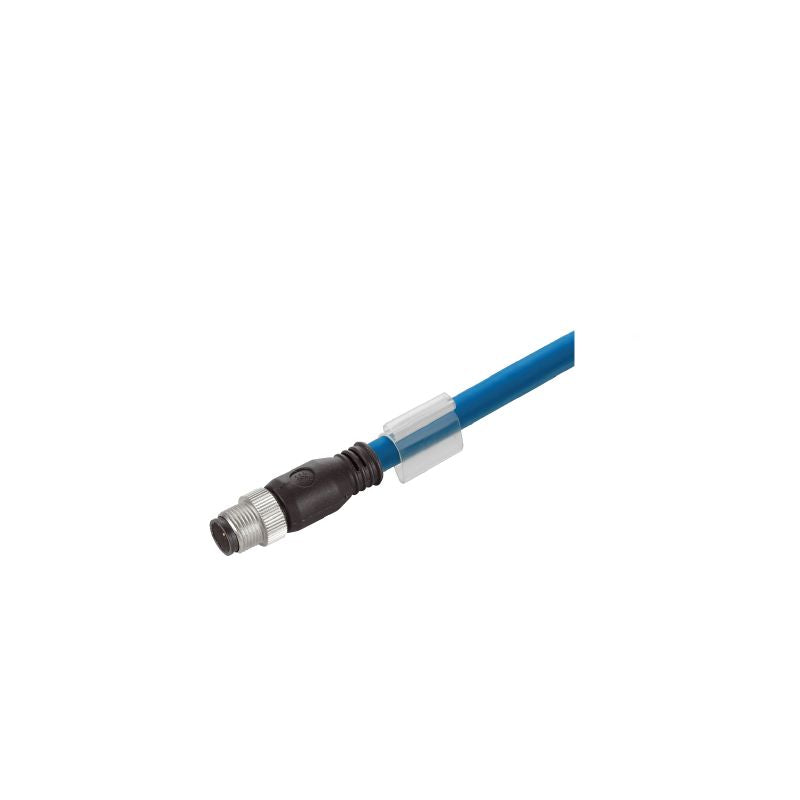

This M12 D-code system cable features a robust straight pin configuration with an IP67 rating, making it ideal for diverse applications It adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications With a length of 3 meters, the cable is protected by a durable polyolefine sheath, ensuring longevity and reliability in your connections.

Features and Benefits:

•IP67 rated for water and dust resistance.

•Compliant with RoHS and REACH regulations.

•Fire safety compliant with NFPA 130 and DIN EN 45545-2 standards.

•Impervious to smoke and resistant to poisonous gases.

Specifications:

Nominal voltage	125 V
Operating temperature	-40 °C to 90 °C
Copper diameter	0.254 mm

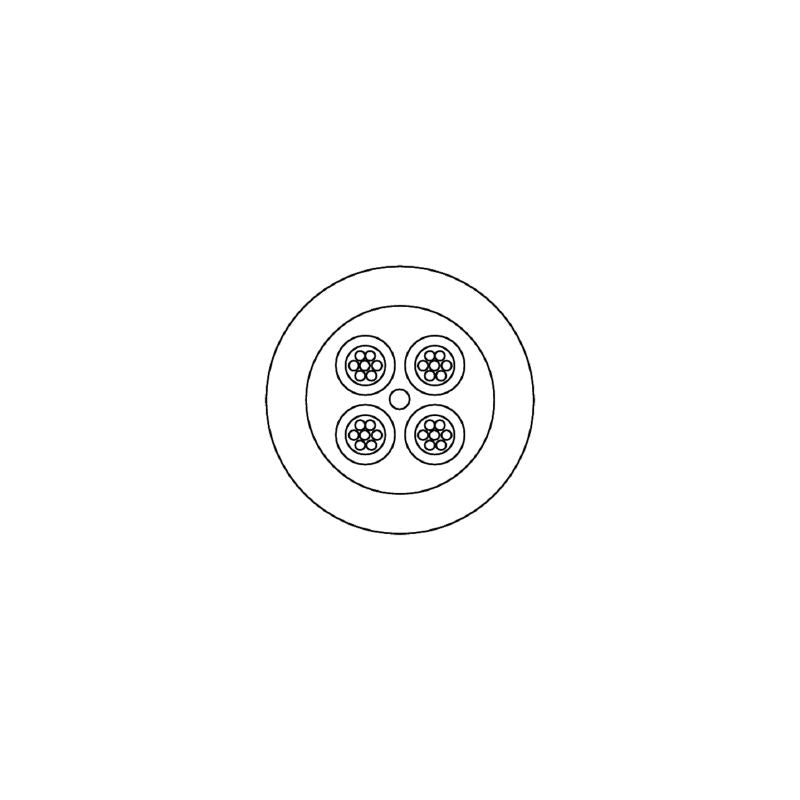

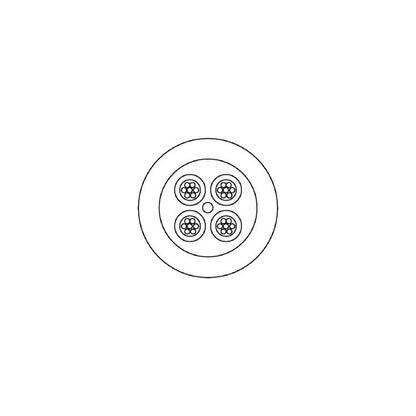

Cross-section	4*AWG 22/7 - 0.32 mm²
Insulation	PE
Material sheath	Polyolefine
Number of wires	4
Sheath diameter, max.	6.8 mm
Sheath diameter, min.	6.4 mm
Sheathing colour	blue
Wire connection cross section AWG, max.	AWG 22
Wire core insulation thickness	1.4 mm
Wire material	tinned copper
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Coupling attenuation up to 1000 MHz	90 dB
Coupling resistance at 10 MHz / m	8 mΩ
Shield attenuation up to 1000 MHz	60 dB
Test voltage: wire-wire-shield	1000 V eff, 50 Hz, 1 min
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	6 * diameter
Resistance to oils	in accordance with IEC 60811:404
