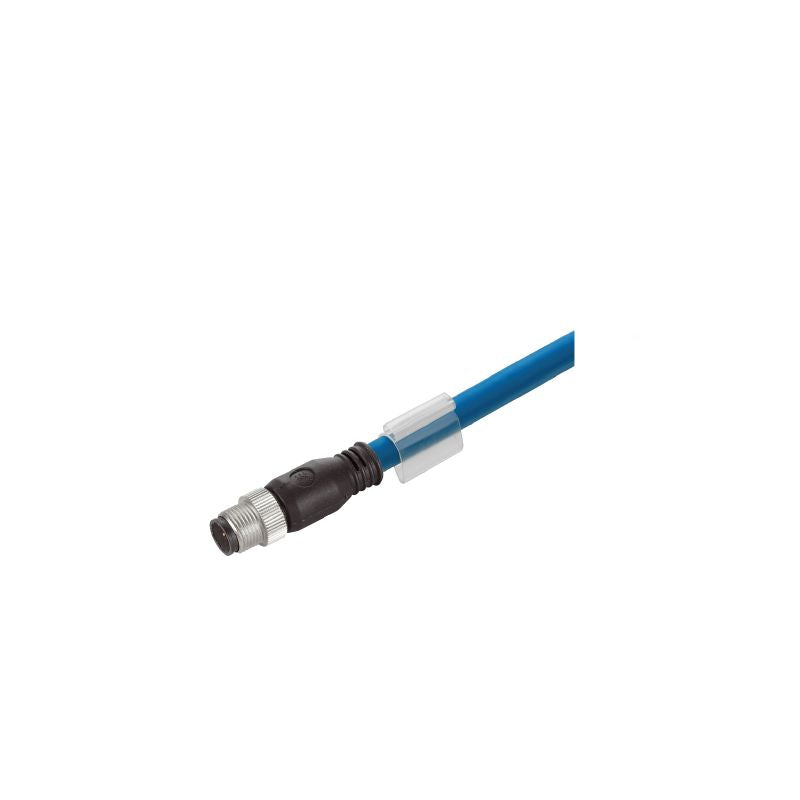

2671890020 - 2m M12 IP67 Cat.5 System Cable, Open Design

SKU: SKU: 2671890020 Download PDF

Select a Variant:

2671890020 - 2m M12 IP67 Cat.5 System Cable, Open Design

SET THE QTY:

Now $36.00 Web pricing policy

~~BEFORE $0.00~~ Now $36.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the M12 D-code system cable, expertly crafted for reliable performance with an IP 67 rating This cable boasts an open design, compatible with both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards Constructed from durable polyolefin, the cable measures 2 meters in length and complies with RoHS regulations, ensuring it is produced with environmentally friendly materials Additionally, it adheres to a range of cable-specific standards, providing peace of mind with its electrical safety and efficiency for your connectivity needs.

Features and Benefits:

•Compliant with RoHS and has a specific exemption.

•Meets various fire safety standards for railway vehicles.

•Impervious to smoke and halogen free.

•Tinned copper wire material for enhanced durability.

Specifications:

Length	2 m
Operating temperature	-40 °C...90 °C
Nominal voltage	125 V

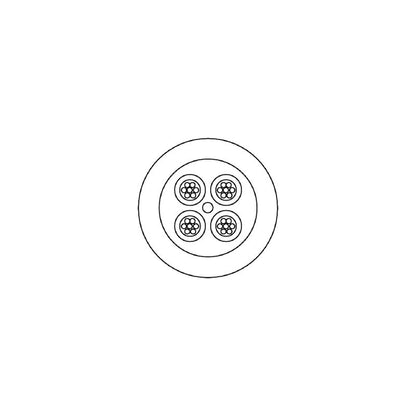

Cable structure	{'Copper diameter': '0.254 mm', 'Cross-section': '4*AWG 22/7 - 0.32 mm²', 'Insulation': 'PE', 'Material sheath': 'Polyolefine', 'Number of wires': '4', 'Sheath diameter, max.': '6.8 mm', 'Sheath diameter, min.': '6.4 mm', 'Wire material': 'tinned copper'}
Electrical properties	{'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Coupling attenuation up to 1000 MHz': '90 dB', 'Shield attenuation up to 1000 MHz': '60 dB', 'Test voltage': '1000 V eff, 50 Hz, 1 min'}
