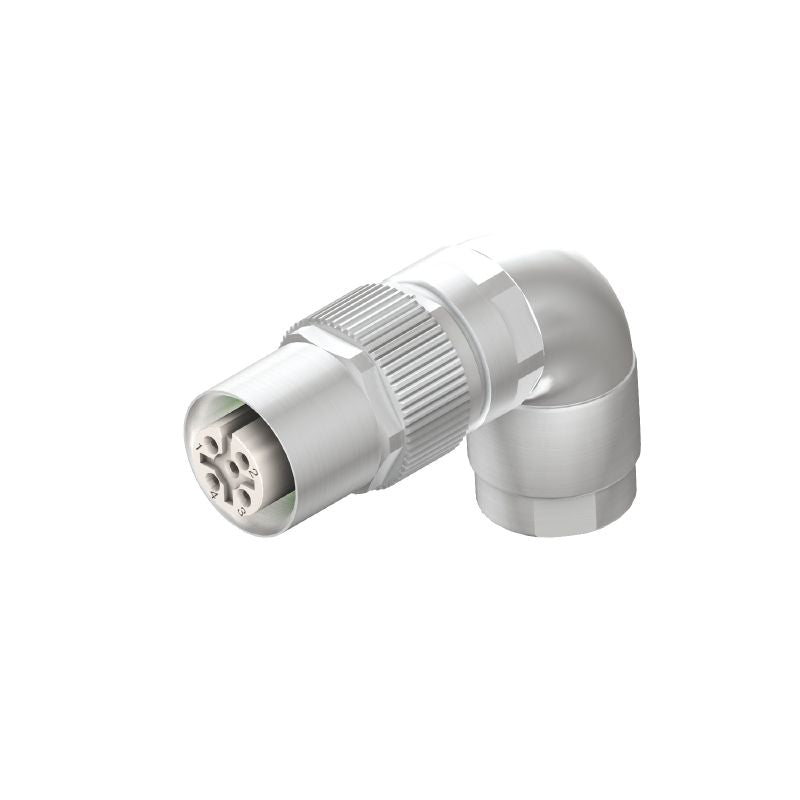

2664830000 - M12 Crimp Connector, IP67, 4-9mm Cable, 4A Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, expertly engineered for a wide range of applications This connector accommodates cables with a diameter ranging from 4 mm to 9 mm and utilizes a reliable crimp connection type specifically designed for female contacts Crafted from durable nickel-plated Cu alloy, it offers exceptional strength and resilience This product adheres to RoHS standards and boasts a maximum current rating of 4 A and a nominal voltage of 50 V.

When properly installed, it provides robust IP67 protection, making it suitable for challenging environments Additionally, the connector supports up to 250 plugging cycles, ensuring long-lasting performance With a temperature tolerance spanning from -40 to +85 °C, and the added benefit of gold-plating for enhanced conductivity, this connector is a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant.

•IP67 protection when screwed in.

•Gold-plated contact surface.

•Capable of supporting a range of wire connection cross sections.

•Constructed from durable materials.

•High plugging cycle rating.

Specifications:
