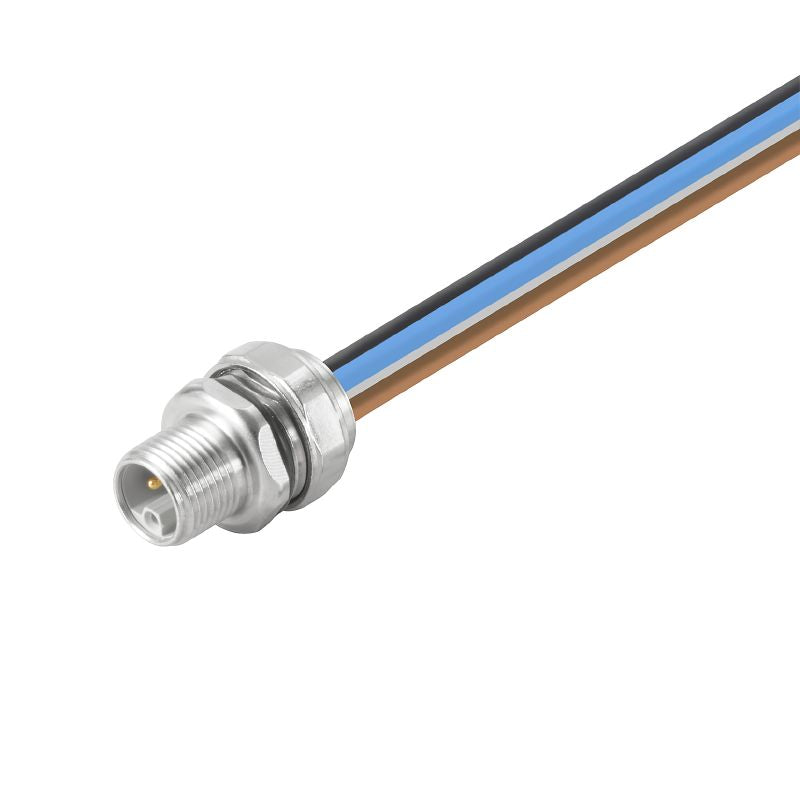

2530770000 - M12 Straight Plug with 5 Poles, M 16 x 1.5 Thread, 0.3m Cable

2530770000 - M12 Straight Plug with 5 Poles, M 16 x 1.5 Thread, 0.3m Cable

SKU: SKU: 2530770000   Download PDF

Select a Variant:
  • 2530770000 - M12 Straight Plug with 5 Poles, M 16 x 1.5 Thread, 0.3m Cable
Qty:
Regular price Now $22.80   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $22.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile product equipped with built-in plugs featuring an M12 connection and a straight design This item is specifically constructed with a mounting thread of M 16 x 15 and includes 5 poles The cable has a length of 03 meters, providing ample reach for various applications With certification number E307231, this product adheres to RoHS regulations, ensuring it meets strict environmental standards.

Features and Benefits:

    •Built-in plugs.

    •L-coded.

    •Zinc diecast housing.

    •Gold-plated contact surface.

    •IP67 protection degree when screwed in.

    •Temperature range of housing from -40 to +85 °C.

    •Nominal current of 16 A.

    •Nominal voltage of 63 V.

Specifications:

 Core cross-section 1.5 mm²

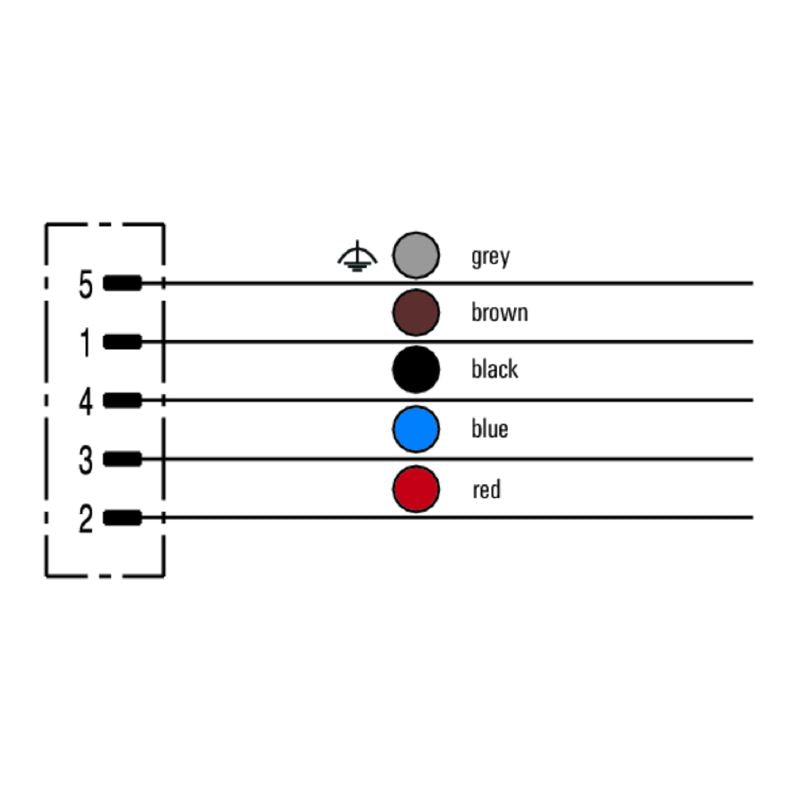

 Number of poles 5
 Strand / cable length 0.3 m
 Connection 1 M12
 Connection 2 Flying wires

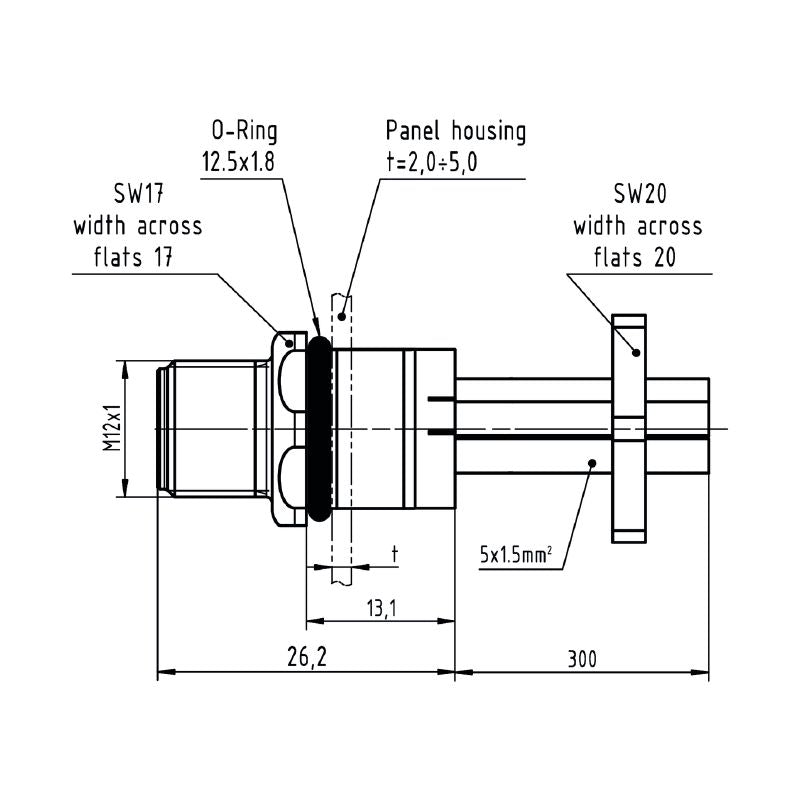

 Mounting thread M 16 x 1.5
 Temperature range of housing -40 … +85 °C
 Conductor O.D. -
 Contact material Cu
 Protection degree IP67
 Contact surface Gold-plated
