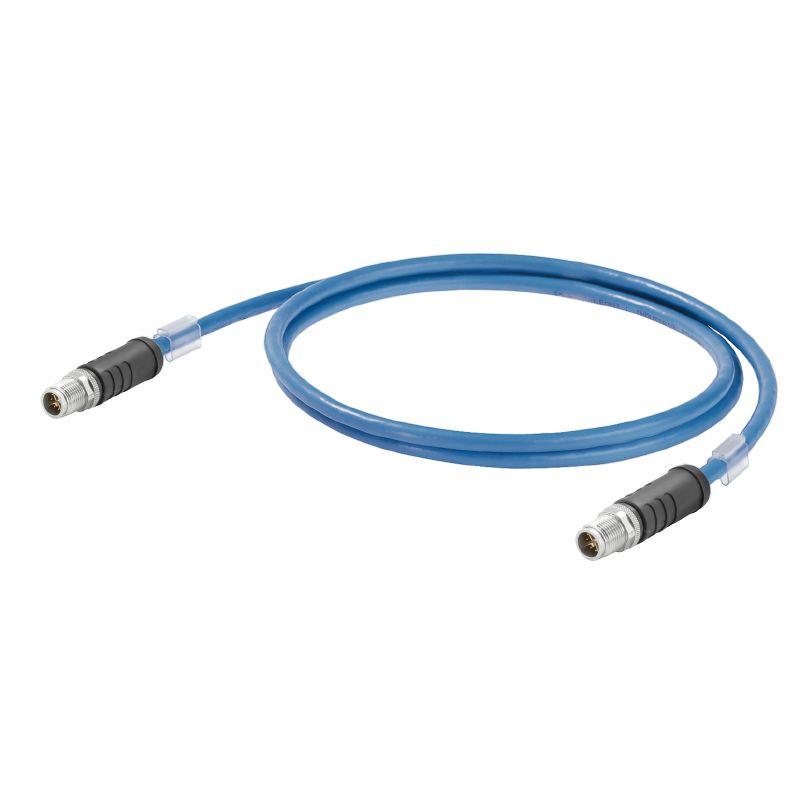

2464200060 - 6m M12 X-Type IP67 System Cable, Class EA Certified

2464200060 - 6m M12 X-Type IP67 System Cable, Class EA Certified

SKU: 2464200060   Download PDF

Select a Variant:
  • 2464200060 - 6m M12 X-Type IP67 System Cable, Class EA Certified
Qty:
Now $200.63   Web pricing policy
BEFORE   $0.00 Now $200.63 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Ensure reliable connectivity with this robust system cable, featuring M12 X-type IP 67 straight male connectors on either end Compliant with Class EA standards (ISO/IEC 11801 2010), this cable measures 6 meters in length and is lightweight at just 0001 g With an impressive operating temperature range of -50 °C to 70 °C, it is well-suited for a diverse array of applications.

Features and Benefits:

    •Compliant with RoHS standards and exemptions.

    •Halogen-free material according to IEC 60754-2.

    •Very good abrasion resistance.

    •Resistance to oils.

Specifications:

 Length 6 m
 Sheath diameter, max. 8.6 mm
 Sheath diameter, min. 7.6 mm
 Transmission rate 10 Gbit/s
 Category Cat.6 A / Class E A
 Connector standard IEC 61076-2-109
 Cross-section 4*2*AWG24/7 - 4*2*0.2 mm²
 Insulation cross-section 1.35 mm
 Shielding S/FTP
 Strands 7
 Min. bending radius, repetitive 4 x cable diameter
 Corrosiveness of fumes to IEC 60754-2
 Impervious to smoke According to BS 6853 Appendix D, According to IEC 61034-2, According to UL1685, 12 (FT4 exp.)
