2455271000 - 10m M12 Power Cable with 5-Pole Connections

2455271000 - 10m M12 Power Cable with 5-Pole Connections

SKU: SKU: 2455271000 Download PDF

Variant:
  • 2455271000 - 10m M12 Power Cable with 5-Pole Connections
Regular price Now $106.02
Regular price BEFORE   $0.00 Sale price Now $106.02
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

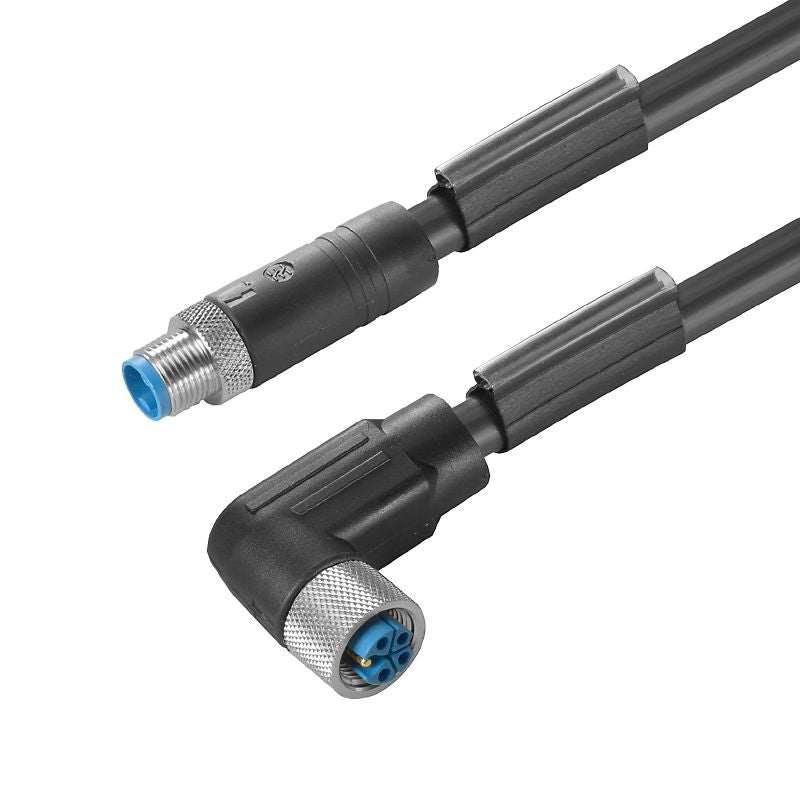

Connect your devices effortlessly with this 10-meter power cable, specifically crafted for M12 connectors featuring five pins—four dedicated to signal transmission and one for ground This cable offers both straight and angled socket options and is designed without shielding The robust sheath is constructed from polyurethane (PUR) and is free from halogens, ensuring a safe and reliable connection for your electrical needs.

Features and Benefits:

    •Non-halogen material.

    •Black outer cladding.

    •Gold-plated contact surface.

    •Suitable for cable carriers.

    •High flexibility in moving applications.

    •Meets IP65 and IP67 protection degree requirements.

Specifications:

 Cable length 10 m

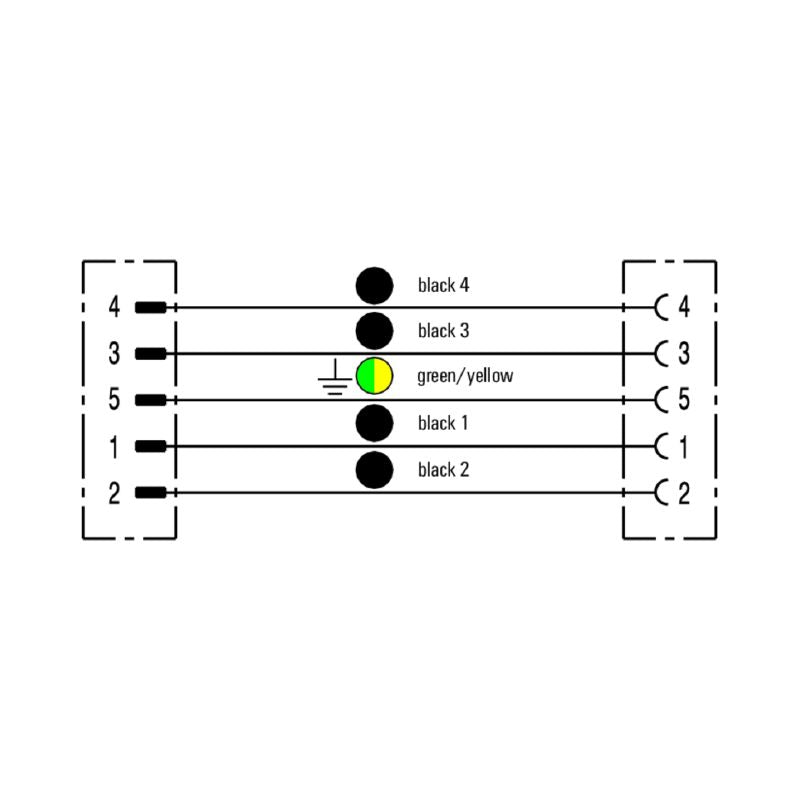

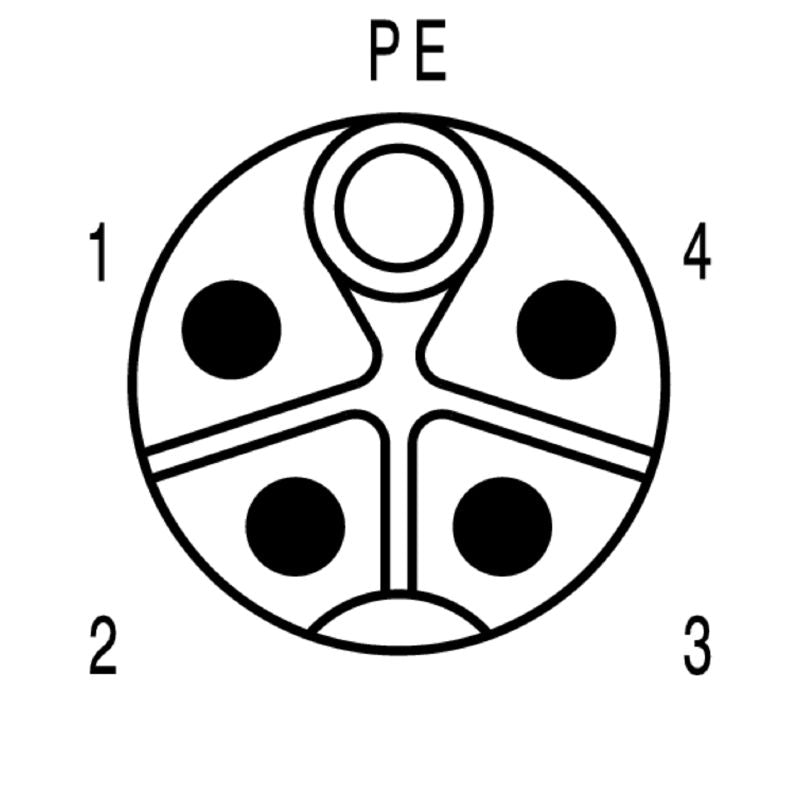

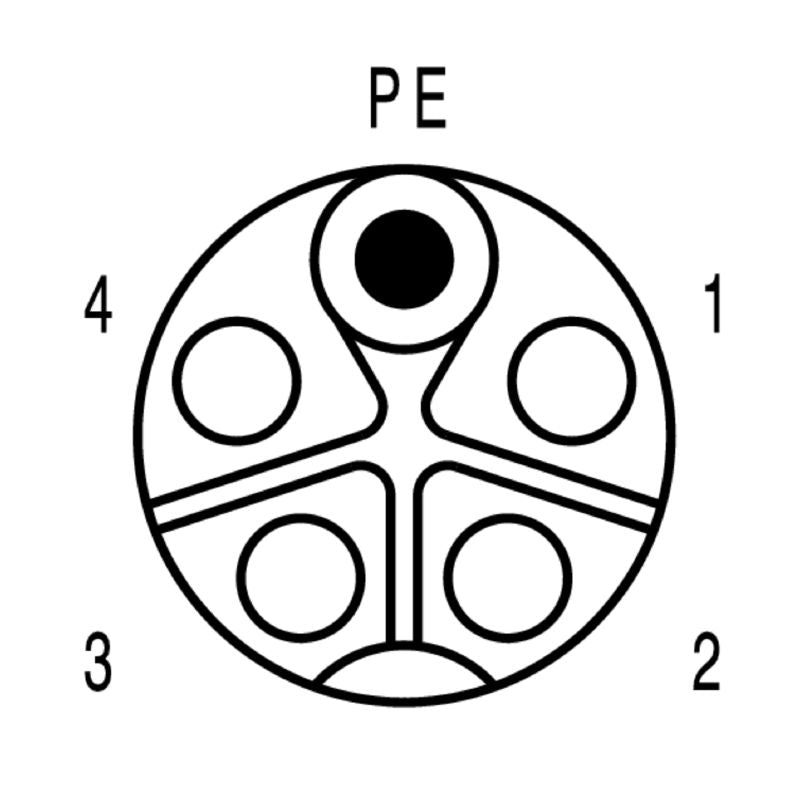

 Number of poles 5 (4 + PE)
 Nominal current 12 A
 Nominal voltage 600 V
 Insulation resistance 10^8 Ω
 Outside diameter 8 mm ± 0.2 mm
 Temperature range, moving -30...80 °C
 Temperature range, stationary -40...80 °C
 Bending cycles 10 Mio
 Protection degree IP65, IP67
 Sheath material PUR
 Coded K-coded
 Plugging cycles ≤ 100
