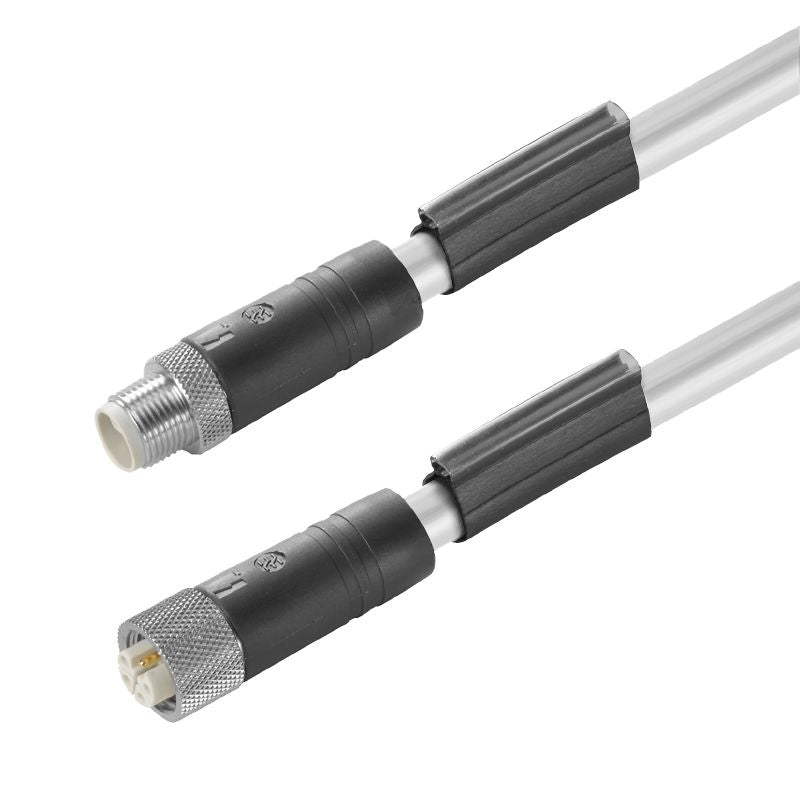

2455260050 - 0.5m M12 Sensor/Actuator Cable, 5-Pole, Halogen-Free PUR

2455260050 - 0.5m M12 Sensor/Actuator Cable, 5-Pole, Halogen-Free PUR

SKU: SKU: 2455260050   Download PDF

Select a Variant:
  • 2455260050 - 0.5m M12 Sensor/Actuator Cable, 5-Pole, Halogen-Free PUR
Qty:
Regular price Now $54.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $54.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Optimize your sensor and actuator connections with this specialized cable Featuring a straightforward M12 to M12 link with five poles, this 05-meter cable is crafted from halogen-free PUR material It is lightweight and designed without shielding or an LED, making it a practical choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS.

    •No configurable cable length.

    •Suitable for cable carriers.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 0.5 m
 Core cross-section 1.5 mm²
 Outer diameter 8 mm ± 0.2 mm
 Nominal current 16 A
 Nominal voltage 50 V
 Insulation resistance 10^8 Ω
 Protection degree IP65 and IP67 when screwed in
 Temperature range, moving -30...80 °C
 Temperature range, stationary -40...80 °C

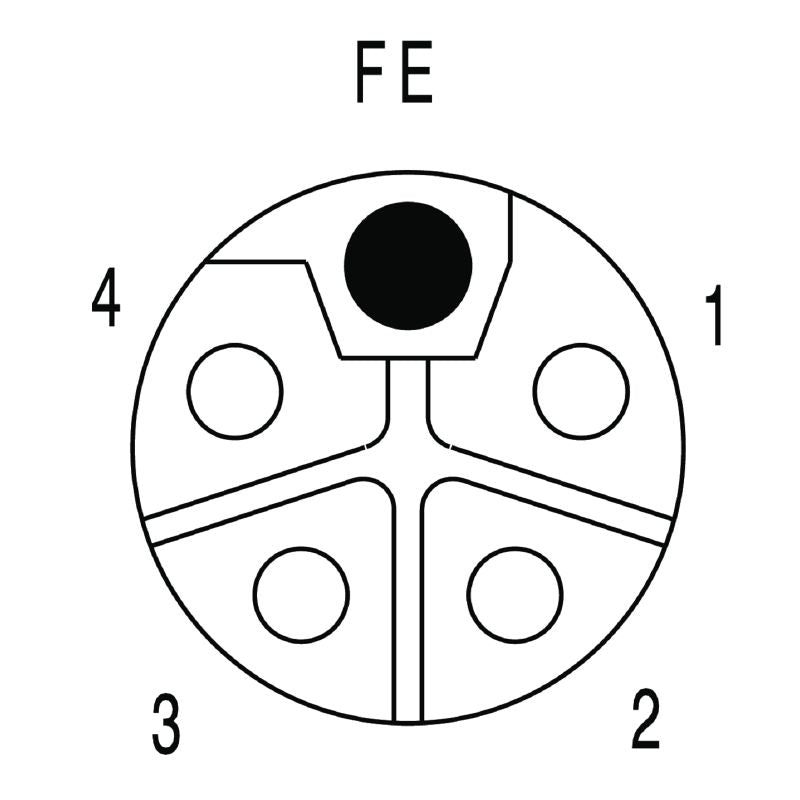

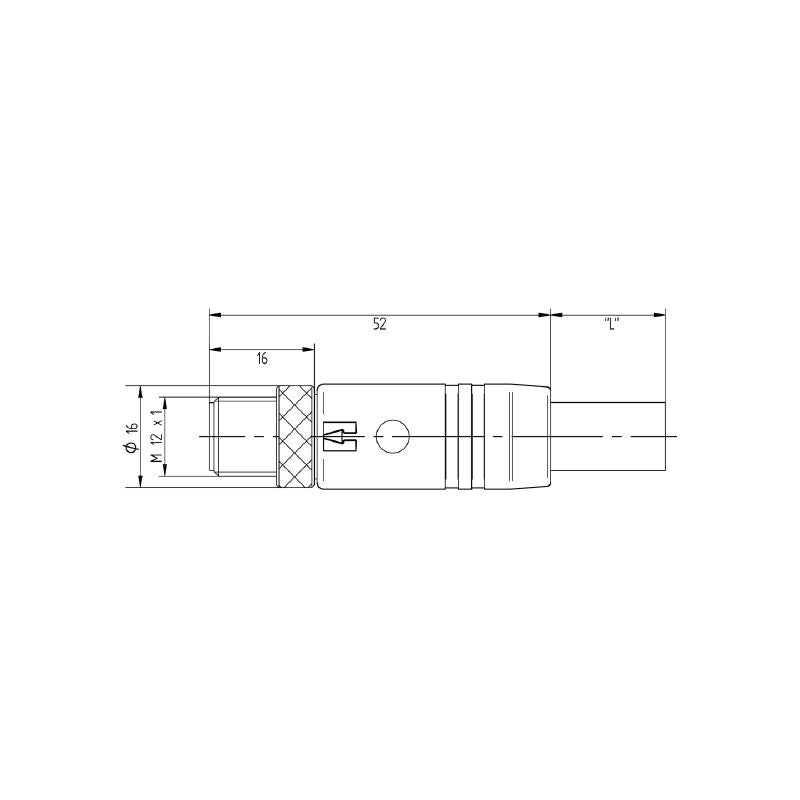

 Plug, left M12, L-coded, IP67, male contact, straight, Plastic, unshielded

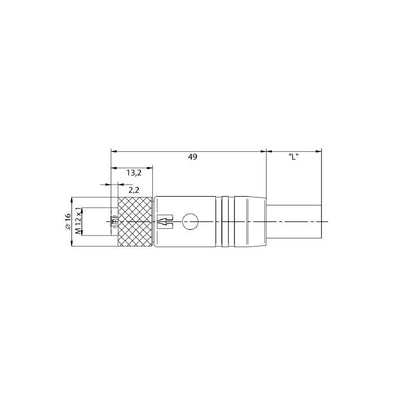

 Plug, right M12, L-coded, IP67, female contact, straight, Plastic, unshielded
