2455210500 - 5m PUR Power Cable with M12 Connection and 5 Poles

2455210500 - 5m PUR Power Cable with M12 Connection and 5 Poles

SKU: SKU: 2455210500   Download PDF

Select a Variant:
  • 2455210500 - 5m PUR Power Cable with M12 Connection and 5 Poles
Qty:
Regular price Now $53.01   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $53.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

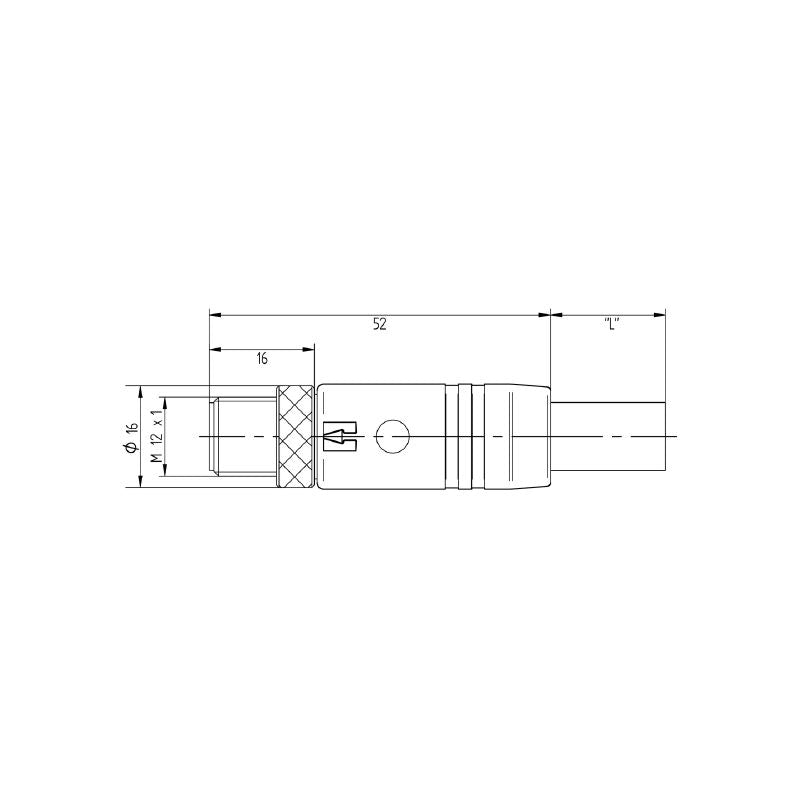

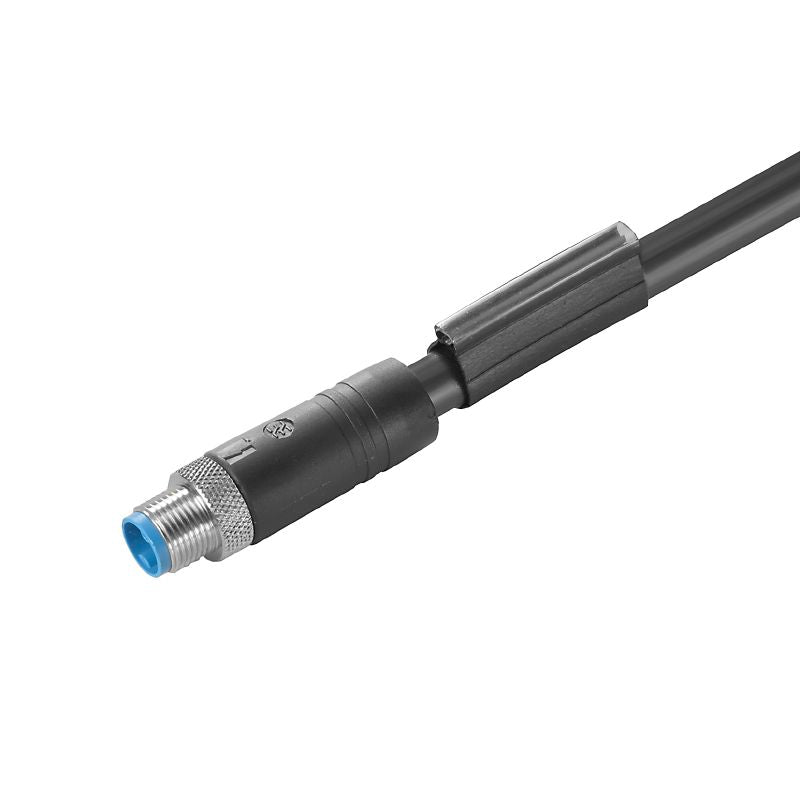

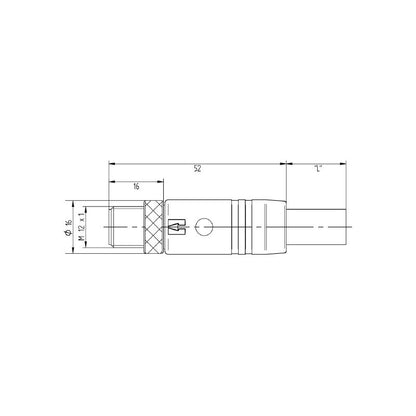

Introducing our versatile power cable, featuring a standard M12 connector on one end and open conductors on the other With a robust 5-pole design, including a dedicated protective earth (PE), this cable measures a generous 5 meters in length Crafted without shielding, it boasts a durable sheath made from high-quality PUR material, ensuring longevity and reliability This cable is halogen-free and does not include any integrated LED functionality, making it a straightforward and efficient choice for your power needs.

Features and Benefits:

    •Nominal current of 12A.

    •Nominal voltage rating of 600V.

    •Suitable for cable carriers.

    •5 million bending cycles endurance.

    •Minimum bending radius of 7.5 times the cable diameter when moving.

    •Black as the outer cladding color.

Specifications:

 Cable length 5m

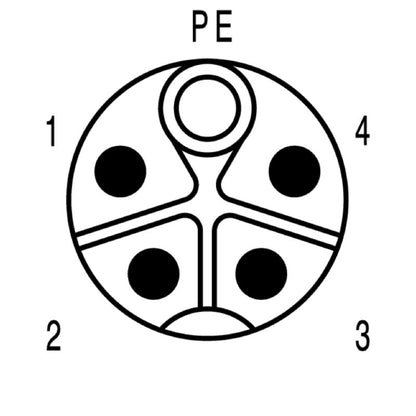

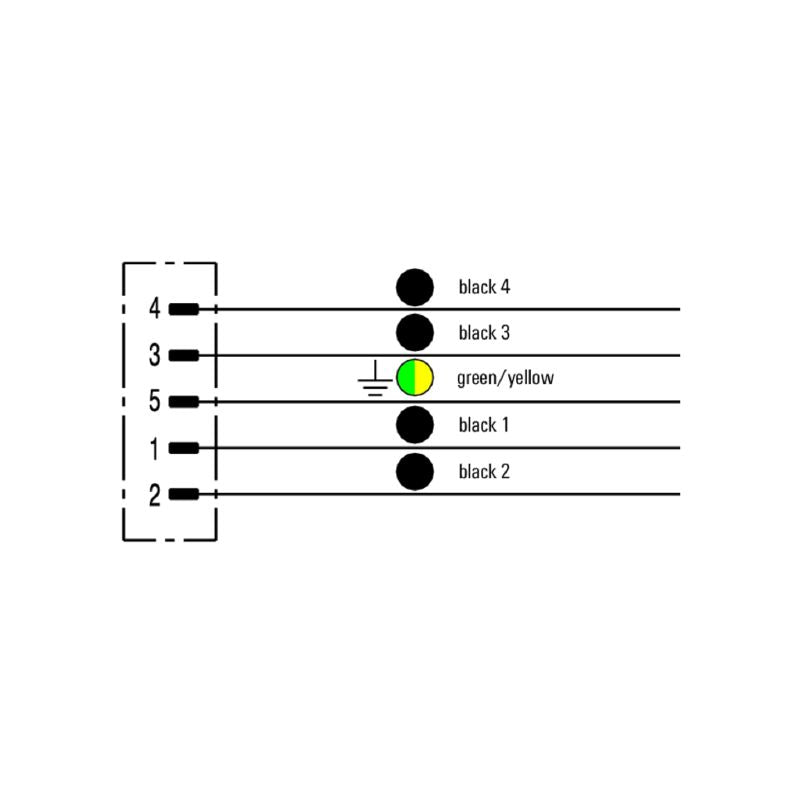

 Number of poles 5 (4 + PE)
 Core cross-section 1.5 mm²
 Outer diameter 8 mm ± 0.2 mm
 Sheath material PUR
 Protection degree IP67 when screwed in
 Temperature range, moving -30...80 °C
 Temperature range, stationary -40...80 °C
 Plugging cycles ≤ 100
 Insulation resistance 10^8 Ω
 Contact surface Gold-plated
 Tightening torque M12: 0.8 - 1.2 Nm
 Halogen No
