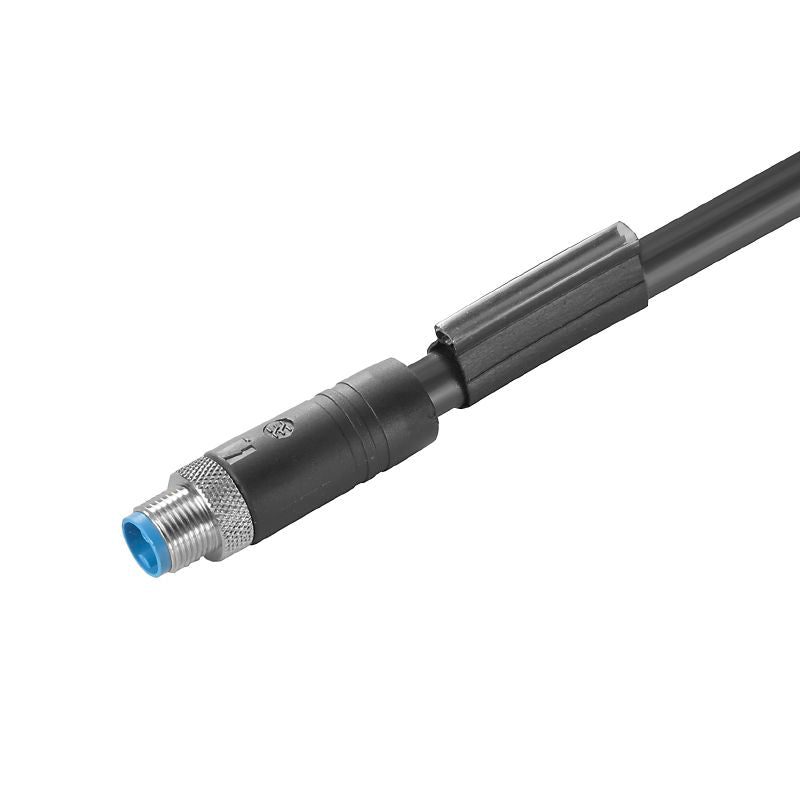

2455210150 - 1.5m M12 Power Cable, 5 Poles, PUR Material

2455210150 - 1.5m M12 Power Cable, 5 Poles, PUR Material

SKU: SKU: 2455210150   Download PDF

Select a Variant:
  • 2455210150 - 1.5m M12 Power Cable, 5 Poles, PUR Material
Qty:
Regular price Now $34.21   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $34.21 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Connect power effortlessly with this specialized M12 power cable, measuring 15 meters in total length Featuring five poles, it includes four dedicated to power transmission and one for protective earth (PE), ensuring safe operation This unshielded cable is made from halogen-free PUR material, providing durability and flexibility without the added complexity of an LED indicator Ideal for various applications, it combines functionality with robust design.

Features and Benefits:

    •Net weight is 100 grams.

    •Suitable for cable carriers.

    •Desirable bending cycles up to 10 million.

    •Minimum bending radius of 7.5 times the cable diameter when in motion.

    •Temperature range for use in motion is between -30 to 80 °C.

    •IP65 and IP67 protection degree when screwed in.

    •Gold-plated contact surface.

Specifications:

 Cable length 1.5 m

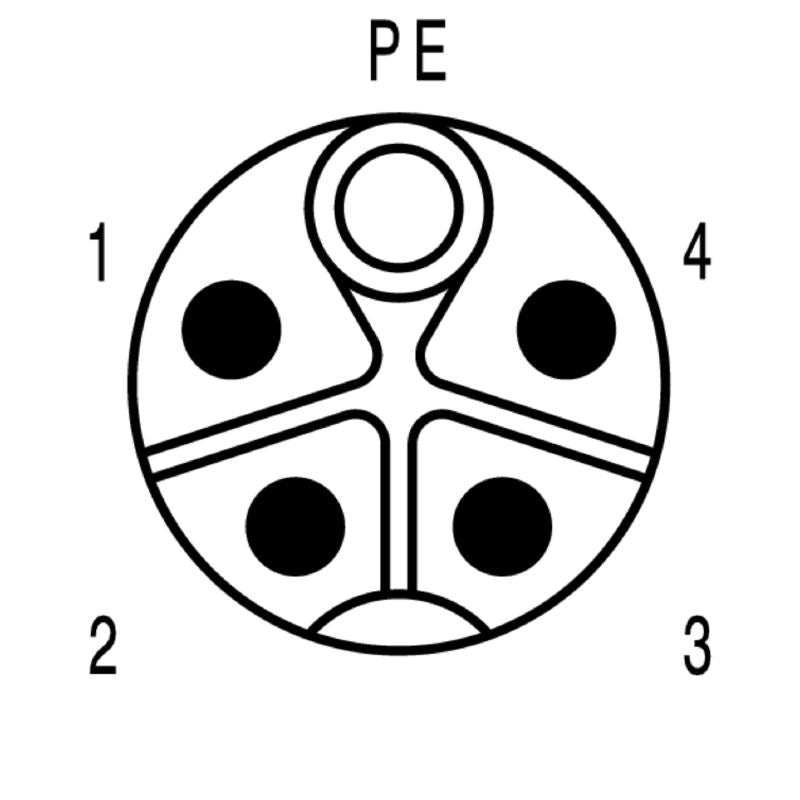

 Number of poles 5 (4 + PE)
 Core cross-section 1.5 mm²
 Outside diameter 8 mm ± 0.2 mm
 Nominal current 12 A
 Nominal voltage 600 V
 Insulation resistance 10^8 Ω
 Bending cycles 10 Mio
 Temperature range, stationary -40...80 °C
 Temperature range of housing -40 … +85 °C
 Sheath material PUR
 Connection thread M12
 Coding K-coded
