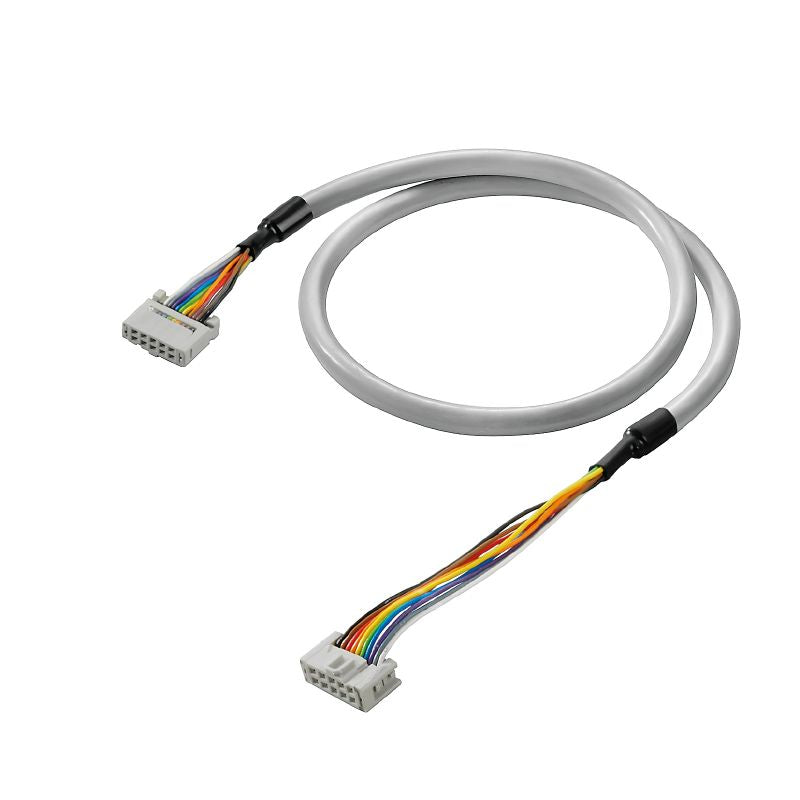

2425940010 - 1m Digital Signal Cable, 0.14mm², 1A Max Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-HE14-HE14-HF-1M cable, expertly crafted for optimal digital signal transmission This 1-meter flat cable boasts a wire cross-section of 014 mm² and is lightweight, weighing in at just 803 grams Designed for a 14-pole interface, it meets RoHS compliance standards for safety and environmental considerations Operating efficiently in a temperature range from -10 to 50 °C, it can withstand storage temperatures between -10 and 60 °C.

The cable supports a maximum operating voltage of 60 V DC or 25 V AC, along with a current capability of 1 A per single path and a total of 3 A With a resistance not exceeding 150 mΩ/m and a capacity of 300 pF/m for both wire/shield and wire/wires, this cable guarantees reliable performance It is categorized under various ETIM and ECLASS classifications for streamlined identification.

Features and Benefits:

•RoHS compliant.

•Suitable for digital signals.

•14-pole interface.

•Flat cable connector HE10 14P.

Specifications:
