22 AWG 15 Pair Type CM Individually Foil Shielded Computer Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

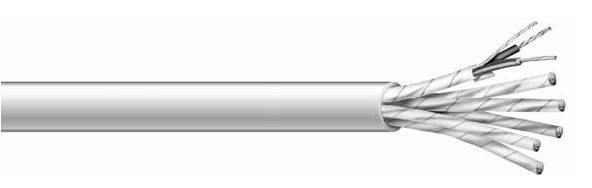

22 AWG 15 Pair Type CM Individually Foil Shielded Computer Cable

Applications:

22 AWG 15 Pair Type CM Individually Foil Shielded Computer Cable is a cable used for total isolation of signal, computers, control circuits, and industrial equipment. Cable's voltage rating is 300 volts. The cable is color-coded in gray.

Also Known As:

22 AWG 15 Pair shielded computer wire, 22 AWG 15 Pair shielded data communication cable, 22 AWG 15 Pair type CM cable, 22 AWG 15 Pair isolated computer cable, 22 AWG 15 Pair computer power cable, 22 AWG 15 Pair computer power cord.

Construction:

Conductors:

Fully annealed, stranded tinned copper per ASTM B-33. The conductors are twisted in pairs.

Insulation:

Premium-grade, color-coded polyethylene.

Jacket:

A gray PVC jacket with a temperature rating between -20°C to +75°C.

Shield:

An aluminum/polyester shield with a 25% foil overlap and a stranded tinned copper drain wire.

Standards:

• NEC 800 Type CMR
• UL Style 2493
• RoHS Compliant Directive 2002/95/EC
• UL 70,000 BTU Vertical Tray Flame Test

Specification:

• Size: 22 AWG
• Number of Pairs: 15
• Conductor Stranding: 7/30
• Nominal Insulation Thickness: 0.011 inches
• Nominal Jacket Thickness: 0.048 inches
• Outside Diameter: 0.591 inches
• Nominal DCR: Cond.-16.5, Shield-11.3
• Vel. of Prop.: 66%
• Nominal of Imp.: 63ohm
• Nominal Cap. pF/ft: A-24.4, B-43.9.
