2050821000 - 10m M12 Power Cable with 4 Poles, PUR Sheath

2050821000 - 10m M12 Power Cable with 4 Poles, PUR Sheath

SKU: SKU: 2050821000 Download PDF

Variant:
  • 2050821000 - 10m M12 Power Cable with 4 Poles, PUR Sheath
Regular price Now $87.80
Regular price BEFORE   $0.00 Sale price Now $87.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

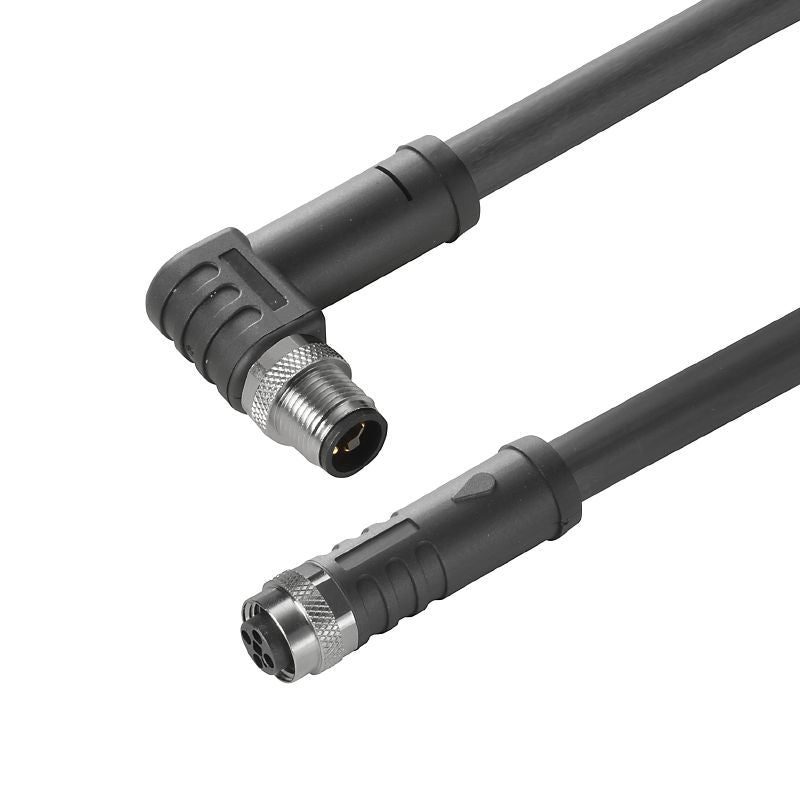

This power cable is designed for M12 connectors and features a robust 4-pole configuration With an impressive length of 10 meters, it includes an angled plug connector paired with a straight bush connector for versatile applications Made from PUR sheath material, this cable is free from halogens and lacks shielding It also adheres to multiple compliance standards, ensuring reliable performance in various settings.

Features and Benefits:

    •Non-shielded design.

    •Halogen-free sheath material.

    •Black sheathing color.

Specifications:

 Cable length 10 m
 Outer cladding in accordance with UL AWM style 20234 (80 °C / 1000 V)
 Outside diameter 9.6 mm ± 0.3 mm
 Core cross-section 1.5 mm²
 Number of poles 4
 Nominal current 12 A
 Nominal voltage 63 V
 Insulation resistance 10^8 Ω
 Protection degree IP67 when screwed in
 Temperature range, moving -40...90 °C
 Temperature range, stationary -50...90 °C
 Contact surface Gold-plated
 Housing main material PUR
