2009390000 - ROHS Approved Plug-in Connector for Cables 3mm to 7mm

2009390000 - ROHS Approved Plug-in Connector for Cables 3mm to 7mm

SKU: SKU: 2009390000 Download PDF

Variant:
  • 2009390000 - ROHS Approved Plug-in Connector for Cables 3mm to 7mm
Regular price Now $12.15
Regular price BEFORE   $0.00 Sale price Now $12.15
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

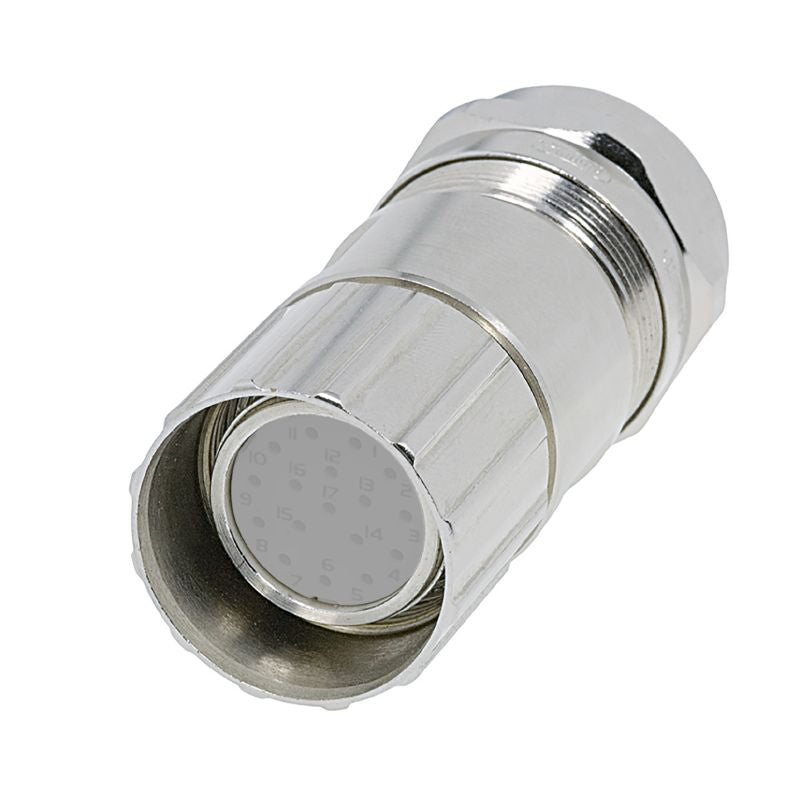

Introducing a versatile sensor and actuator plug-in connector, featuring a streamlined empty enclosure design This component adheres to ROHS regulations and is recognized with a UL file number E344862, ensuring quality and safety It comes with the general ordering number 2009390000 and is identified by the GTIN code 4050118395426 This connector is specifically crafted to support a range of cable sizes, accommodating diameters from a minimum of 3mm to a maximum of 7mm.

Features and Benefits:

    •Net weight of 50g.

    •Environmental compliance: RoHS Compliant.

    •Contains REACH SVHC Lead 7439-92-1.

    •Protection degree: IP67 and IP69K.

    •Plugging cycles: greater than 1000.

    •Housing main material: Copper-zinc alloy.

    •Pollution severity: 3.

    •Temperature range of housing: -40…+125 °C.

    •Shield connection: Yes.

Specifications:

 Cable diameter, max. 7 mm
 Cable diameter, min. 3 mm
 Classifications ETIM 6.0 EC000437
 Classifications ETIM 7.0 EC003556
 Classifications ETIM 8.0 EC003556
 Classifications ETIM 9.0 EC003556
 Classifications ETIM 10.0 EC003556
 Classifications ECLASS 9.1 27-44-02-02
 Classifications ECLASS 10.0 27-44-02-24
 Classifications ECLASS 11.0 27-44-02-24
 Classifications ECLASS 12.0 27-44-02-24
 Classifications ECLASS 13.0 27-44-02-24
 Classifications ECLASS 14.0 27-44-02-24
 Classifications ECLASS 15.0 27-44-02-24
