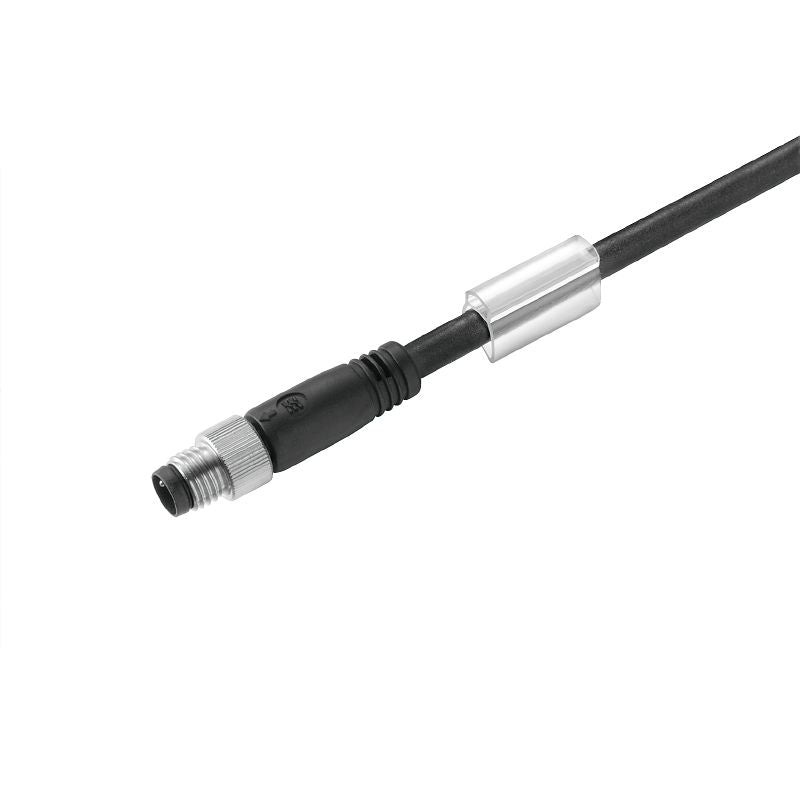

1927250300 - 4-Pole Shielded Sensor/Actuator Line, 3m PVC Cable

1927250300 - 4-Pole Shielded Sensor/Actuator Line, 3m PVC Cable

SKU: SKU: 1927250300

Select a Variant:
  • 1927250300 - 4-Pole Shielded Sensor/Actuator Line, 3m PVC Cable
Qty:
Regular price Now $7.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our versatile sensor/actuator cable, measuring 3 meters in length This cable features a four-pin design in a straight configuration, ensuring reliable connections Crafted from halogen-free PVC, it is also shielded for enhanced durability Please note that this product does not come with a connector, making it an excellent choice for customized applications.

Features and Benefits:

    •Sheath material is PVC.

    •A-coded connection thread.

    •Gold-plated contact surface.

    •Housing material is PUR.

    •Protection degree is IP65 to IP68.

    •Nominal current rating of 4A.

    •Compatible with IEC 61076-2-104 connector standards.

Specifications:

 Cable length 3 m
 Number of poles 4
 Core cross-section 0.25 mm²
 Outer diameter 4.8 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Nominal voltage 30 V
 Plugging cycles ≥ 100
 Tightening torque M8: 0.5 - 0.6 Nm
 Threaded ring material Brass, nickel-plated
 Insulation PVC
 Halogen Yes
 LED No
