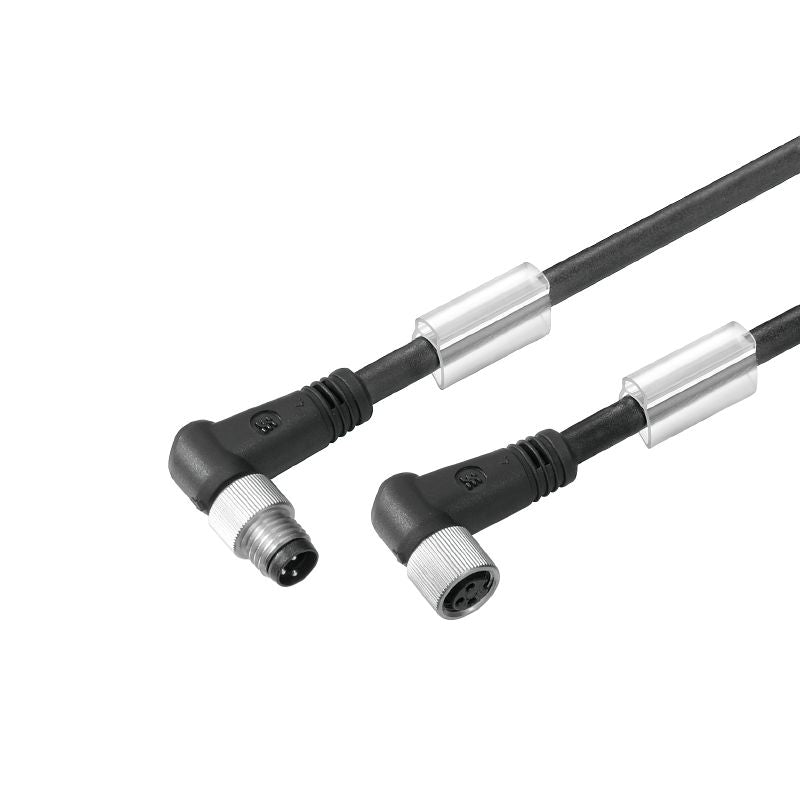

1927210300 - 3m Shielded M8 Connector Cable for Sensors and Actuators

1927210300 - 3m Shielded M8 Connector Cable for Sensors and Actuators

SKU: SKU: 1927210300   Download PDF

Select a Variant:
  • 1927210300 - 3m Shielded M8 Connector Cable for Sensors and Actuators
Qty:
Regular price Now $11.84   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your sensor and actuator setups with this high-performance connecting line, featuring an M8 to M8 connection This 3-meter shielded cable is crafted from halogen-free PVC, ensuring safety and reliability in various applications Designed with a 90° socket configuration, it contains three pins for optimal performance, making it an essential addition to your equipment.

Features and Benefits:

    •Cable length: 3 meters.

    •Number of poles: 3.

    •Sheath material: PVC.

    •Welding spark resistance: No.

    •Insulation resistance: 10^8 Ω.

    •Nominal current: 4 A.

    •Nominal voltage: 60 V.

    •Protection degree: IP65, IP66, IP67, IP68 when screwed in.

    •Temperature range, moving: -5...80 °C.

    •Temperature range, stationary: -30...80 °C.

Specifications:

 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Coding A-coded
 Connection thread M8 / M8
 Contact surface Gold-plated
 Housing main material PUR
 Plugging cycles ≥ 100
 Pollution severity 3
 Threaded ring material Brass, nickel-plated
 Tightening torque M8: 0.5 - 0.6 Nm
 Certification (cULus) E307231
 Connector standard IEC 61076-2-104
