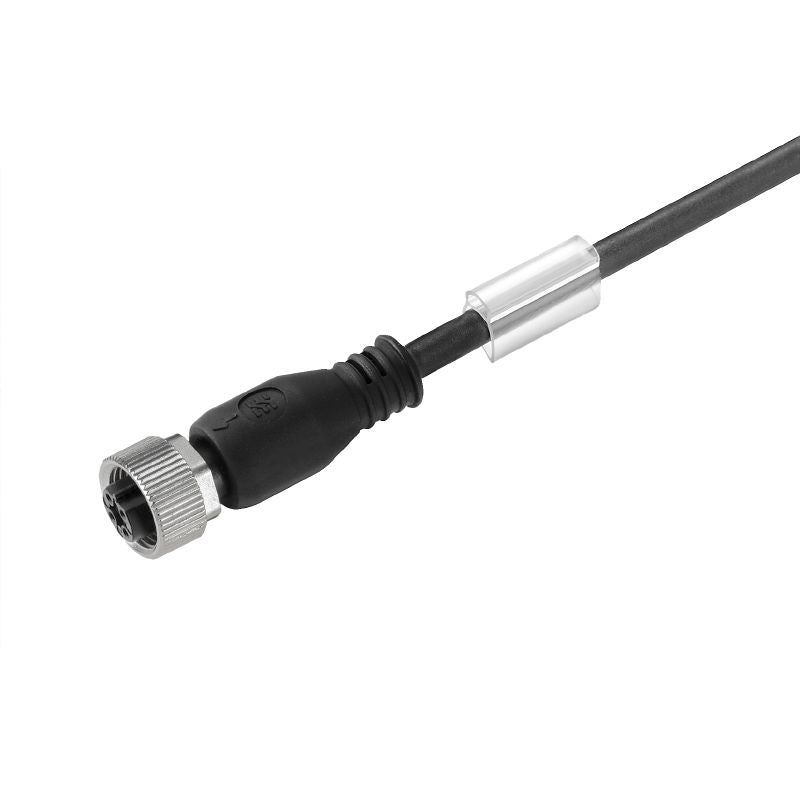

1925570300 - 3m M12 Female Socket Sensor Cable with 3 Poles

1925570300 - 3m M12 Female Socket Sensor Cable with 3 Poles

SKU: SKU: 1925570300

Select a Variant:
  • 1925570300 - 3m M12 Female Socket Sensor Cable with 3 Poles
Qty:
Regular price Now $7.41   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.41 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable solution from our sensor/actuator range, featuring a robust M12 connector designed with three poles This 3-meter long cable comes equipped with a straight female socket, ensuring easy connectivity While the cable is unshielded and does not include an LED, it is constructed from durable PVC and contains halogen, adhering to RoHS standards for safety Additionally, it comes with a UL certification (number E307231) for quality assurance.

Features and Benefits:

    •Female socket configuration.

    •Non-shielded design.

    •Halogen-containing sheath material.

    •PVC insulation.

    •UL certified.

Specifications:

 Cable length 3 m
 Colour coding brown, blue, black
 Core cross-section 0.34 mm²
 Outer diameter 4.9 mm ± 0.2 mm
 Number of poles 3
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP67, IP68 (when screwed in), IP65, IP66
 Plugging cycles ≥ 100
 Connection thread M12
 Contact surface Gold-plated
 Housing main material PUR
 Tightening torque M12: 0.8 - 1.2 Nm
 Threaded ring material Diecast zinc
