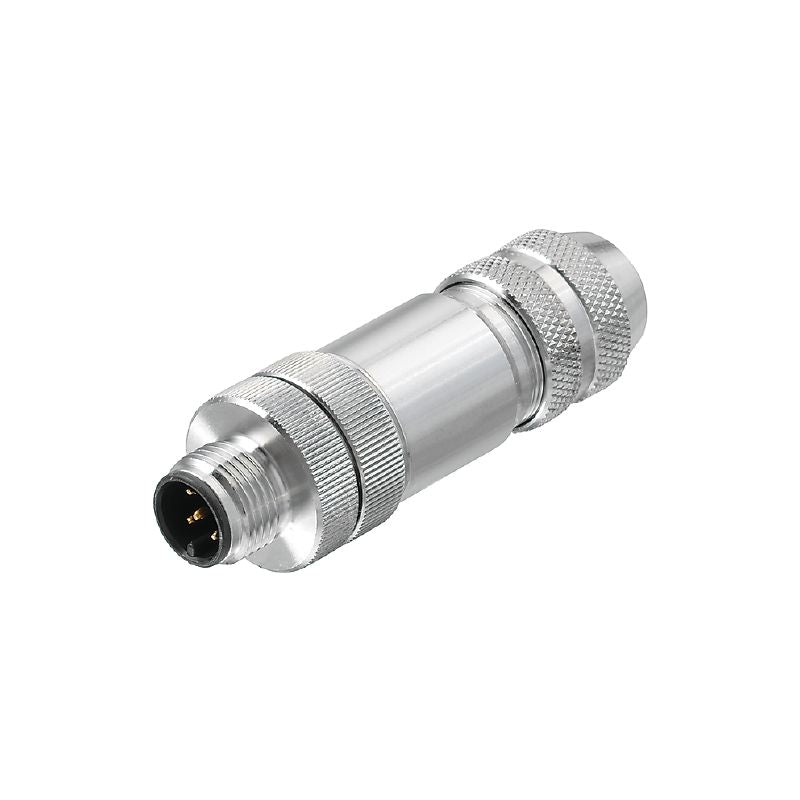

1920700000 - Male Field-Attachable Connector, IP69K, 6-8mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISGZ-V-5A-6/8-M12, a versatile field-attachable connector with a male configuration and a reliable tension-clamp connection Engineered with A-coded standards, this connector accommodates cable diameters ranging from 6 mm to 8 mm It is suitable for conductor cross-sections between 014 mm² and 05 mm² Featuring gold-plated contact surfaces, this component ensures superior conductivity and supports a nominal current of 4 A and a nominal voltage of 60 V.

It is designed to operate in environments with a pollution severity level of 3 and boasts a robust protection rating of IP69K Additionally, the connector is built to withstand a minimum of 100 plugging cycles, highlighting its durability Crafted from corrosion-resistant stainless steel, this connector is reliable across a temperature range of -40 to +85 °C, making it ideal for demanding applications.

Features and Benefits:

•Gold-plated contact surfaces.

•IP69K protection degree.

•Durable stainless steel housing.

•Tension-clamp connection for secure attachment.

•Suitable for harsh environments.

Specifications:
