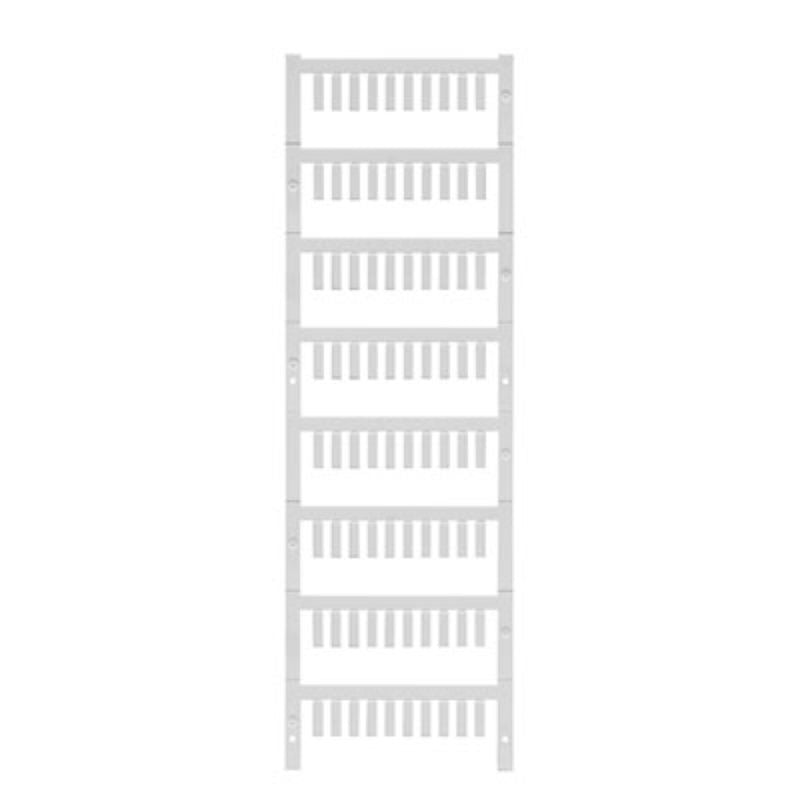

1919250000 - 12x3.2mm Cable Markers, ROHS Compliant, 80 Pack (Pack of 80)

1919250000 - 12x3.2mm Cable Markers, ROHS Compliant, 80 Pack (Pack of 80)

SKU: SKU: 1919250000 Download PDF

Variant:
  • 1919250000 - 12x3.2mm Cable Markers, ROHS Compliant, 80 Pack (Pack of 80)
Regular price Now $21.40
Regular price BEFORE   $0.00 Sale price Now $21.40
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SF 0/12 MC SDR V2, specially crafted for marking conductors and cables according to your unique specifications It accommodates conductor outer diameters ranging from 12 to 16 mm, while measuring 12 x 32 mm overall This product is ROHS compliant, aligning with environmental safety standards With a robust temperature tolerance, it operates effectively in conditions from -40 °C to 100 °C.

Each order comes with 80 pieces conveniently packaged on a MultiCard, making it easy to handle and utilize for your projects.

Features and Benefits:

    •Compliant with ROHS standards without exemption.

    •MultiCard supply form with a total of 80 items.

    •Customizable colors based on customer requirements.

    •Horizontal orientation of print for labels.

    •Black printing color.

    •Conductor and cable marking.

Specifications:

 Operating temperature range -40...100 °C
 Conductor cross-section, max. 0.5 mm²
 Conductor cross-section, min. 0.25 mm²
 Conductor O.D. 1.2 - 1.6 mm
 Size of labelling field 12 x 3.2 mm
 UL 94 flammability rating V-2
 Basic material Polyamide 66
 Printing method MC Laser
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
