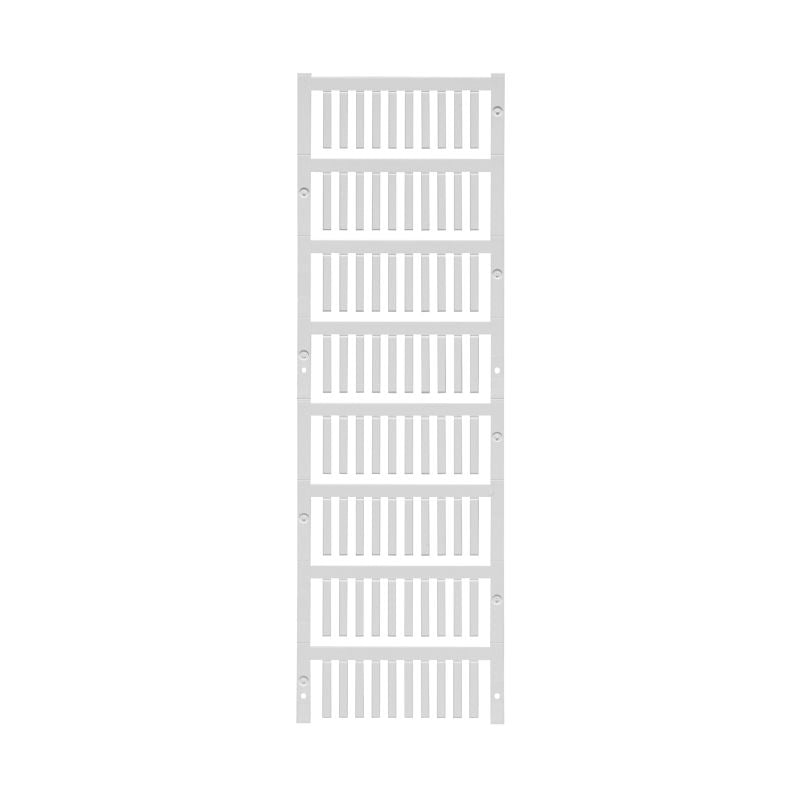

1918470000 - SlimFix 21x3.2mm Cable Marker, RoHS Compliant (Pack of 80)

1918470000 - SlimFix 21x3.2mm Cable Marker, RoHS Compliant (Pack of 80)

SKU: SKU: 1918470000 Download PDF

Variant:
  • 1918470000 - SlimFix 21x3.2mm Cable Marker, RoHS Compliant (Pack of 80)
Regular price Now $23.70
Regular price BEFORE   $0.00 Sale price Now $23.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix conductor and cable marker, expertly crafted to fulfill customer requirements With dimensions of 21 x 32 mm, it accommodates conductor diameters between 12 and 16 mm Designed in compliance with RoHS regulations, it reflects a commitment to environmental sustainability, as shown by its minimal carbon footprint of just 0003 kg CO2 equivalent from cradle to gate Each order includes 80 markers, and they are engineered to withstand challenging temperature ranges, performing reliably from -40°C to 100°C.

Features and Benefits:

    •Customizable color based on customer needs.

    •Requires M-Print PRO file for printed characters.

    •MultiCard packaging unit for convenient supply.

    •Compatible with PRINTJET CONNECT printer.

Specifications:

 Depth 3.2 mm
 Height 21 mm
 Width 3.2 mm
 Net weight 0.21 g
 Operating temperature range -40...100 °C
 Conductor cross-section, max 0.5 mm²
 Conductor cross-section, min 0.25 mm²
 Conductor O.D. 1.2 - 1.6 mm
 UL 94 flammability rating V-2
 Basic material Polyamide 66
 Colour of printing black
 Number of markers per combination 1 MultiCard
 Size of labelling field 21 x 3.2 mm
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
