1873300150 - M12 Connectorless Bus Line, 1.5m, 2-Pole PUR Cable

1873300150 - M12 Connectorless Bus Line, 1.5m, 2-Pole PUR Cable

SKU: SKU: 1873300150   Download PDF

Select a Variant:
  • 1873300150 - M12 Connectorless Bus Line, 1.5m, 2-Pole PUR Cable
Qty:
Regular price Now $25.87   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $25.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

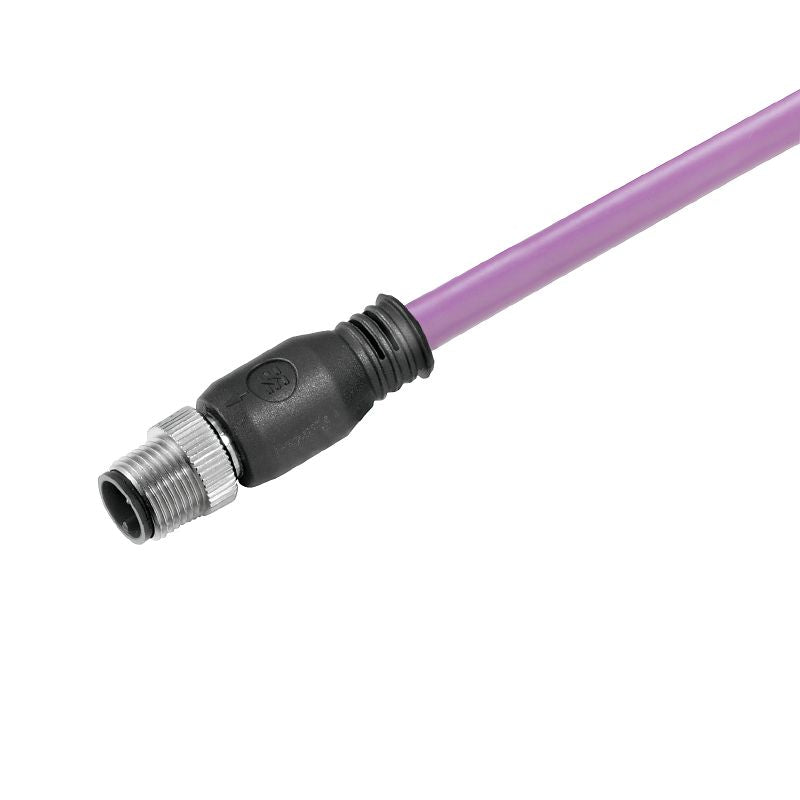

Introducing a specialized bus line featuring a unique connectorless design at one end This cable boasts an M12 configuration with two poles and measures a convenient 15 meters in length Engineered with a straight pin and shielded for enhanced protection, it is made from halogen-free PUR material Please note, this model does not include an LED feature, making it a reliable choice for various applications.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Environmentally friendly with REACH SVHC regulations.

    •Suitable for cable carriers.

    •B-coded connection thread.

    •Designed for protection level IP67.

    •Weight is light at 129 g.

    •Flexible temperature ranges suitable for different installation contexts.

Specifications:

 Cable length 1.5 m
 Number of poles 2
 Bending cycles 2 Mio
 Outer diameter 7.8 mm ± 0.2 mm
 Sheath material PUR
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Temperature range, moving -20...60 °C
 Temperature range, stationary -40...70 °C
 Protection degree IP67
 Speed 3 m/s
 Contact material Ni/Au
 Contact surface Gold-plated
