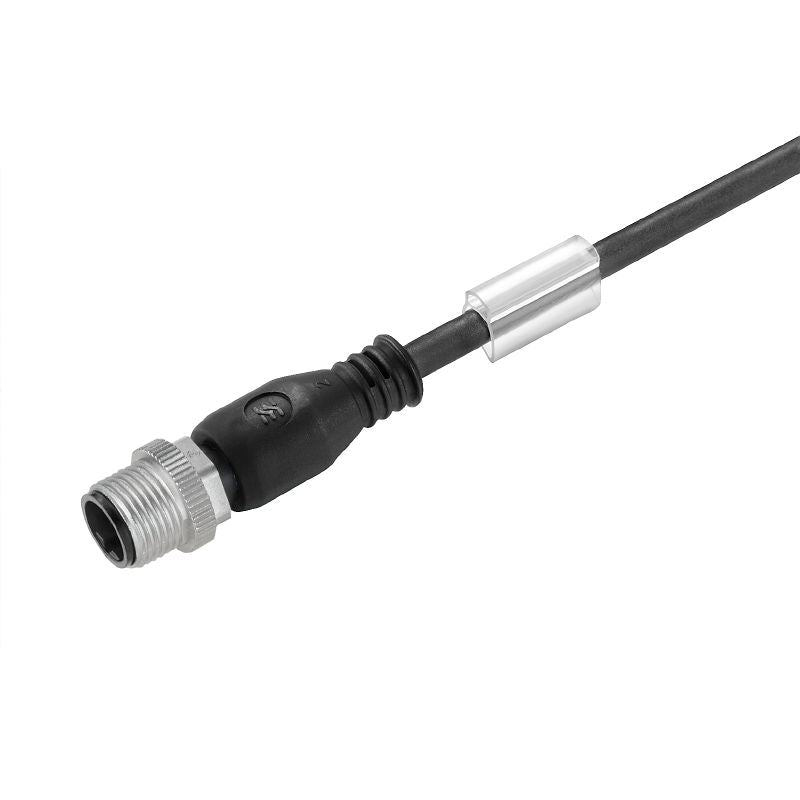

1785120500 - 5m M12 Shielded Cable, PVC, 2 Poles, Free Conductor End

1785120500 - 5m M12 Shielded Cable, PVC, 2 Poles, Free Conductor End

SKU: SKU: 1785120500   Download PDF

Select a Variant:
  • 1785120500 - 5m M12 Shielded Cable, PVC, 2 Poles, Free Conductor End
Qty:
Regular price Now $51.94   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $51.94 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile M12 bus line cable that spans 5 meters, featuring a straightforward 2-pole and straight pin setup This cable is equipped with a shielded design and constructed from halogen-free PVC material, ensuring safety and reliability Its free conductor end adds to its adaptability, making it suitable for a wide range of applications in various settings.

Features and Benefits:

    •Halogen-free material.

    •M12 connection thread.

    •IP67 protection degree.

    •Gold-plated contact surface.

    •High insulation resistance.

Specifications:

 Cable length 5 m
 Outside diameter 8 mm ± 0.4 mm
 Core cross-section 1 mm²
 Bending radius, min., moving 8 x cable diameter
 Bending radius, min., stationary 8 x cable diameter
 Nominal voltage 100 V
 Temperature range, moving -5...60 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Pollution severity 3
 Threaded ring material Brass, nickel-plated
 Tightening torque M12: 0.8 - 1.2 Nm
 LED No
 Coding A-coded
 Contact material Ni/Au
 Housing main material PUR
