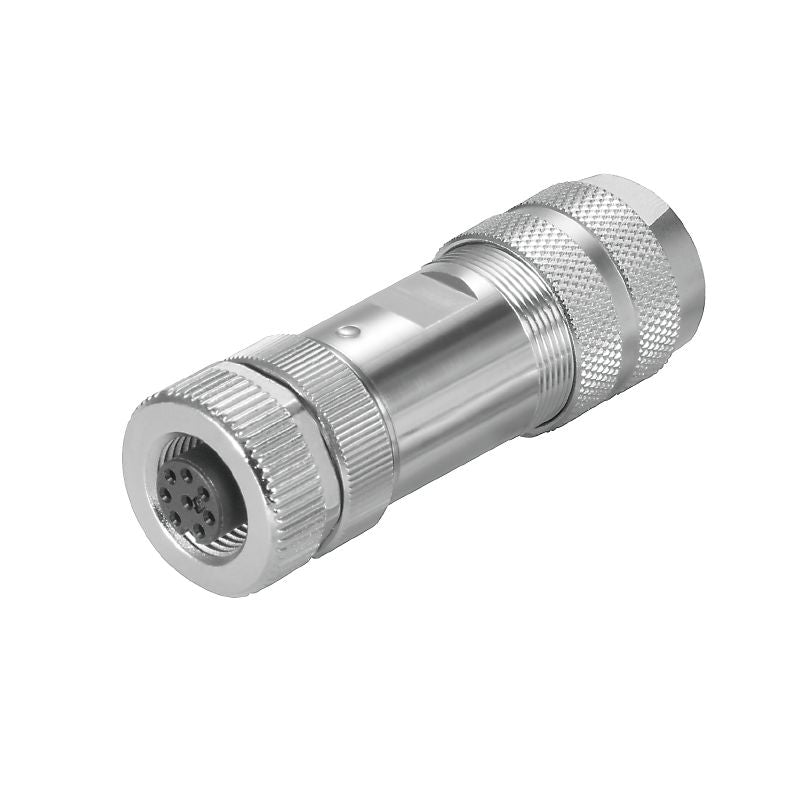

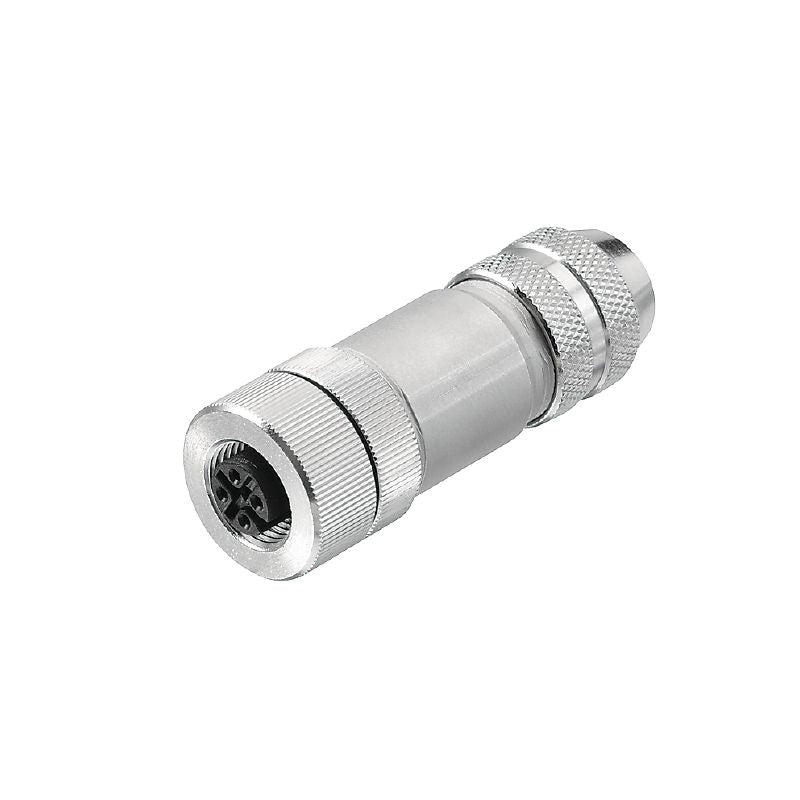

1784750000 - IP67 M12 Connector for Cables 6-8mm, Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, order number 1784750000, crafted to meet RoHS regulations and carrying the UL File Number E307231 This versatile connector accommodates cable diameters ranging from 6 mm to 8 mm and is compatible with gold-plated female contacts It supports a conductor cross-section between 014 mm² and 075 mm², ensuring high insulation resistance of 10^8 Ω Rated for 5 poles, this connector manages a nominal current of 4 A and a voltage of 60 V.

With a pollution level of 3 and an IP67 protection rating, it’s suitable for challenging environments The durable threaded ring is made from diecast zinc, while the housing features CuZn construction Able to handle temperatures from -40 to +85 °C, it also facilitates screw connections with a longevity of at least 100 plugging cycles.

Features and Benefits:

•Gold-plated contact surfaces.

•IP67 protection degree.

•Screw connection type for secure attachment.

•Maximum insulation resistance of 10^8 Ω.

•Compatible with various cable diameters.

Specifications:
