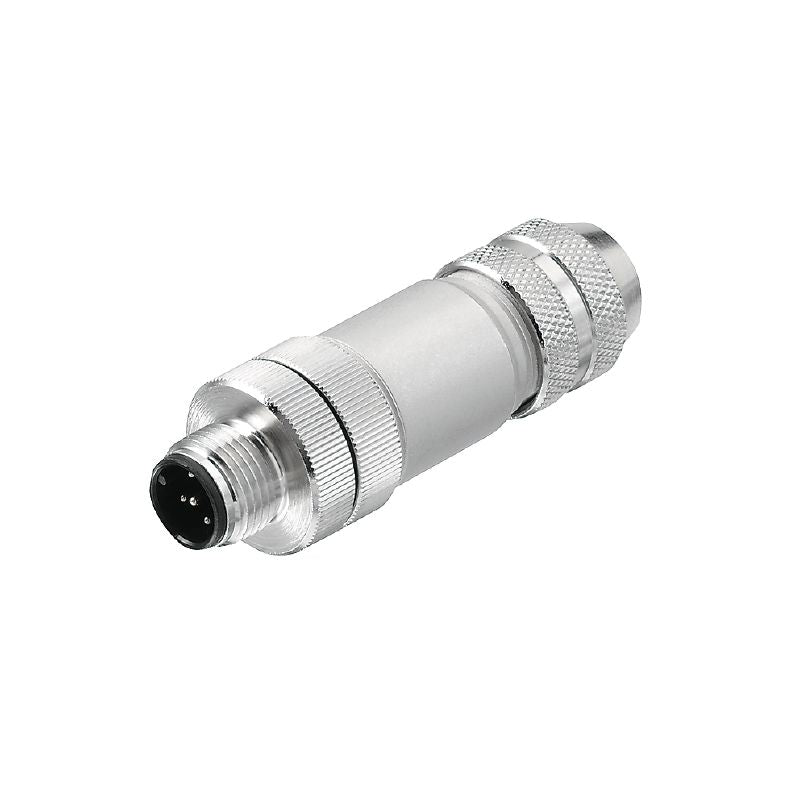

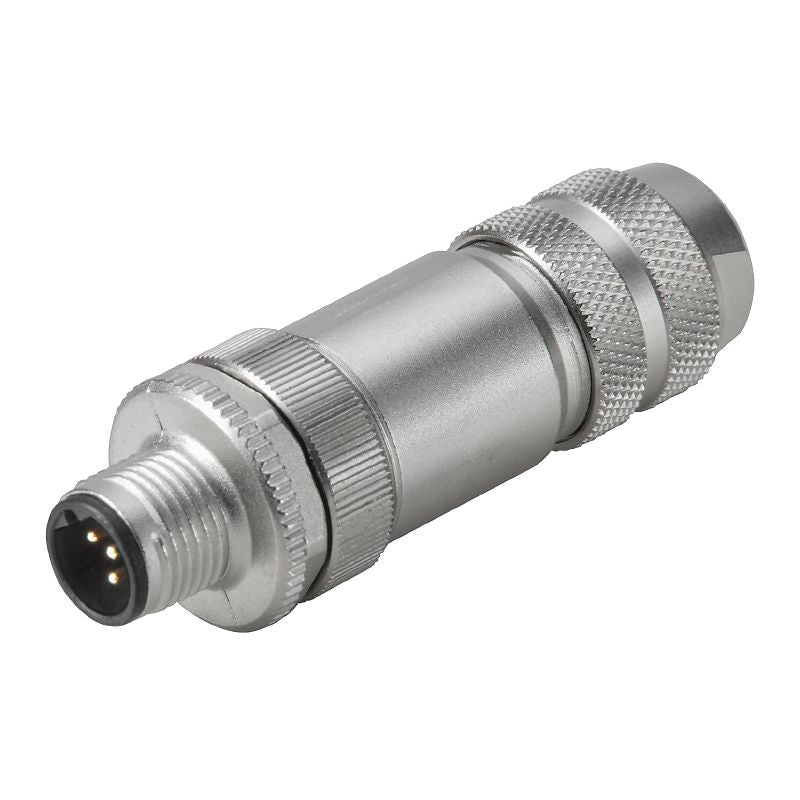

1784740000 - M12 Field Attachable Connector, Gold-Plated, IP67, 6-8mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure optimal connectivity with this field attachable M12 connector, expertly crafted to meet RoHS specifications and certified under E307231 by UL This connector accommodates cables ranging from 6 mm to 8 mm in diameter Designed with an A-coded style, it ensures reliable connections for your needs, supporting conductor cross-sections between 014 mm² and 075 mm² Made from CuZn with a gold-plated finish, it guarantees superior contact quality.

With an impressive insulation resistance of 10^8 Ω, this male connector is rated for a nominal current of 4 A at 60 V, optimized for a five-pole configuration It can withstand up to 100 plugging cycles and is rated at pollution severity level 3 Additionally, its IP67 protection rating promises resilience against environmental elements, making it a reliable choice for various applications.

Features and Benefits:

•Compliant with RoHS regulations.

•Gold-plated contact surface.

•Rated for at least 100 plugging cycles.

•Suitable for various environmental conditions with IP67 protection.

Specifications:
