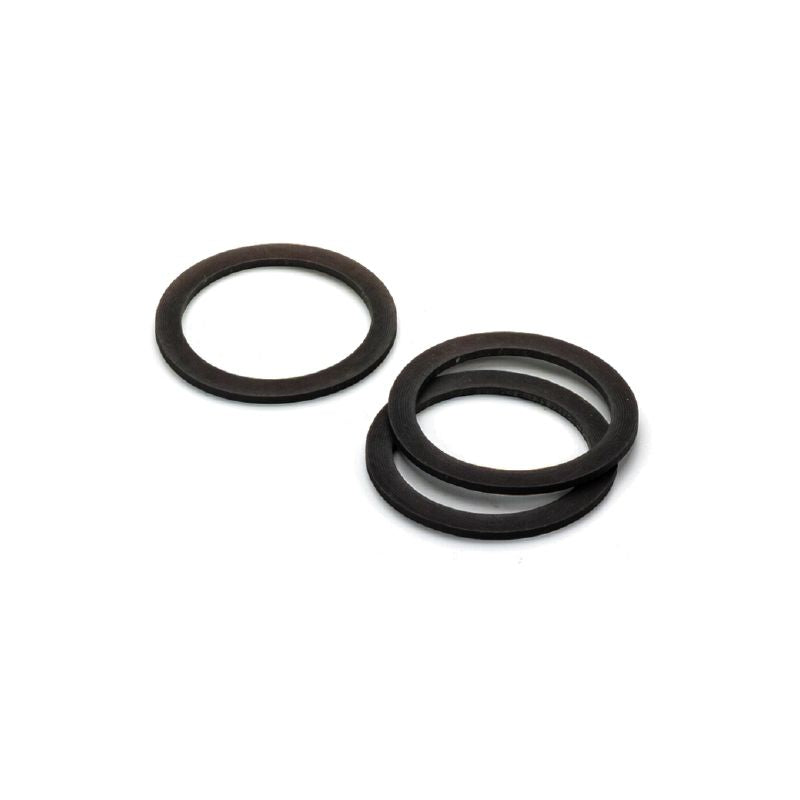

1719620000 - Neoprene Flat Gasket for PG 42 Cable Glands (Pack of 10)

SKU: SKU: 1719620000 Download PDF

Select a Variant:

1719620000 - Neoprene Flat Gasket for PG 42 Cable Glands (Pack of 10)

SET THE QTY:

Now $134.09 Web pricing policy

~~BEFORE $0.00~~ Now $134.09 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the GWDR PG42-NP neoprene flat gasket, expertly engineered with a sealing ring for optimal performance with PG 42 cable glands This component measures just 15 mm in height and has a lightweight design at 32 grams, making it easy to integrate into your applications Adhering to RoHS regulations, this gasket also meets stringent environmental compliance standards It operates effectively in a temperature range from -40 °C to 100 °C, providing adaptability for diverse environments.

Features and Benefits:

•Complies with RoHS without exemptions.

•Basic material is neoprene.

•Exhibits halogen presence.

•Diameter of sealing ring is 65 mm.

•Inside diameter is 54 mm.

•Maximum operating temperature is 100 °C.

•Minimum operating temperature is -40 °C.

Specifications:

Height	1.5 mm
Height (inches)	0.059 inch
Operating temperature	-40 °C...100 °C
Net weight	3.2 g
Cable gland	PG 42
External thread	PG 42
Internal thread	PG 42
Number of wires	1
O.D.	65 mm
Thickness	1.5 mm
Classification	{'ETIM 6.0': 'EC001181', 'ETIM 7.0': 'EC001181', 'ETIM 8.0': 'EC001181', 'ETIM 9.0': 'EC001181', 'ETIM 10.0': 'EC001181', 'ECLASS 9.0': '27-43-03-19', 'ECLASS 9.1': '27-14-44-90', 'ECLASS 10.0': '27-43-03-19', 'ECLASS 11.0': '27-43-03-19', 'ECLASS 12.0': '27-43-03-19', 'ECLASS 13.0': '27-43-03-19', 'ECLASS 14.0': '27-43-03-19', 'ECLASS 15.0': '27-43-03-19'}
