1718490001 - Polyamide Cable Marker for 3-3.7mm, RoHS Compliant (Pack of 640)

1718490001 - Polyamide Cable Marker for 3-3.7mm, RoHS Compliant (Pack of 640)

SKU: SKU: 1718490001 Download PDF

Variant:
  • 1718490001 - Polyamide Cable Marker for 3-3.7mm, RoHS Compliant (Pack of 640)
Regular price Now $124.70
Regular price BEFORE   $0.00 Sale price Now $124.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

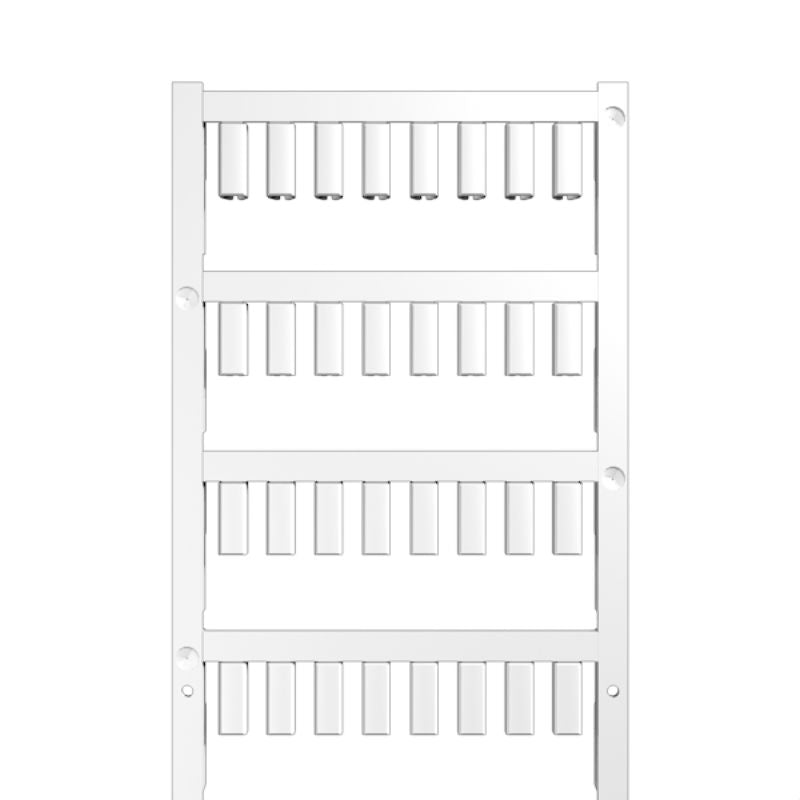

The VT SF 3/12 MC NE WS V0 is expertly crafted for labeling conductors and cables measuring between 3 to 37 mm, with dimensions of 12 x 46 mm Made from durable polyamide 66, this marking solution adheres to RoHS standards, making it environmentally friendly With a wide operating temperature range from -50 °C to 120 °C, it is ideal for diverse applications across the transportation and machinery sectors.

Features and Benefits:

    •Each MultiCard contains conductor and cable markers.

    •Printed with neutral type for versatility.

    •Compliant with RoHS without exemption.

    •Does not contain halogens.

    •Marking for transportation and machinery industries.

Specifications:

 Depth 4.8 mm
 Height 12 mm
 Width 4.6 mm
 Operating temperature range -50...120 °C
 Conductor cross-section, min. 1.5 mm²
 Conductor cross-section, max. 2.5 mm²
 Conductor O.D., min. 3 mm
 Conductor O.D., max. 3.7 mm
 Cross-section for connected wire 1.5 - 2.5 mm²
 UL 94 flammability rating V-0
 Product Carbon Footprint 0.002 kg CO2 eq.
 GTIN (EAN) 4008190349608
