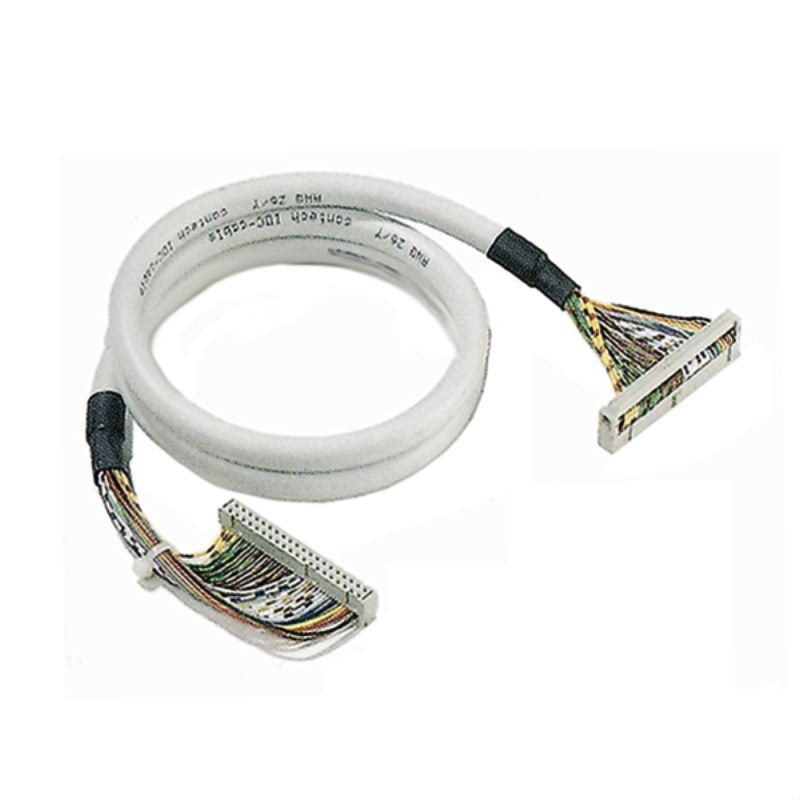

1536840010 - 1m LiYCY Flat Cable 0.14mm² 40-Pole Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LiYCY cable, a dependable solution for digital signal transmission With a cross-sectional area of 014 mm² and a length of 1 meter, this cable is engineered for optimal performance One end hosts the FLAT CABLE PLANO HE10 40P connector featuring at least 40 poles, making it versatile for various applications The cable's outer diameter is around 1015 mm It can handle a maximum current strength of 1 A per path, with a total capacity of 3 A, making it efficient for your electrical needs.

The rated voltage is capped at 60 Vdc and 25 Vac It boasts impressive electrical metrics, including a capacitance of 300 pF/m between wire and shield as well as between wires The resistance is limited to 150 mΩ/m, ensuring minimal signal loss during transmission Additionally, it can endure high voltage testing up to 1 KV for 1 second This cable adheres to RoHS regulations and is recognized for its environmental safety by restricting lead, which is considered a substance of very high concern.

Invest in the LiYCY cable for reliable connectivity and compliance.

Features and Benefits:

•Compliant with RoHS regulations.

•Made of PVC material.

•Designed for digital signal transmission.

Specifications:
