Home / INDUSTRIAL ETHERNET - PASSIVE COMPONENTS / 1522100019 - 1.9m Cat.5 IP 20 RJ45 Cable, PVC Material
1 1

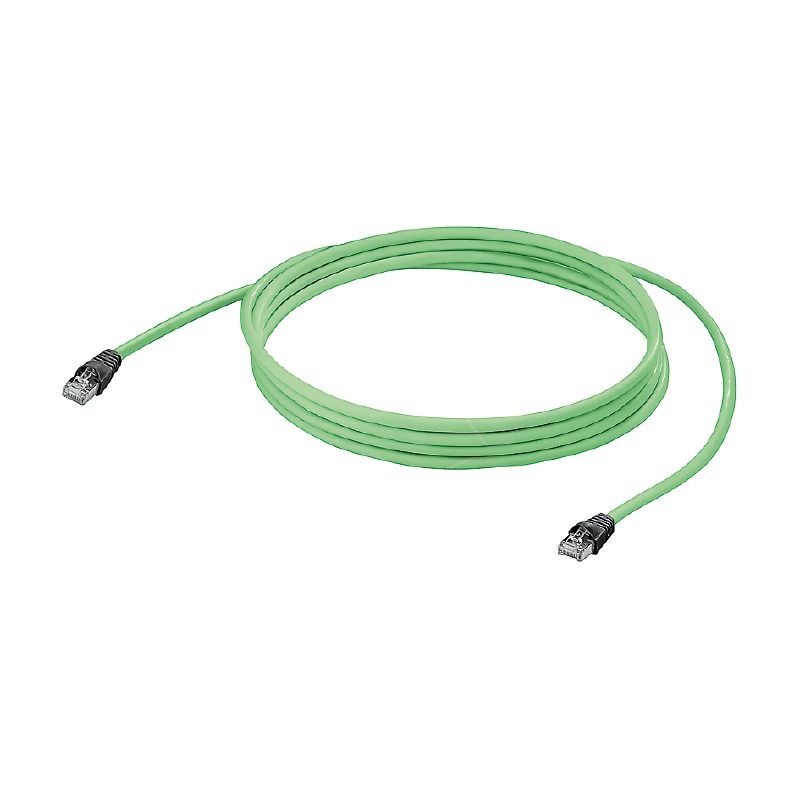

1522100019 - 1.9m Cat.5 IP 20 RJ45 Cable, PVC Material

1522100019 - 1.9m Cat.5 IP 20 RJ45 Cable, PVC Material

SKU: 1522100019   Download PDF

Select a Variant:
  • 1522100019 - 1.9m Cat.5 IP 20 RJ45 Cable, PVC Material
Qty:
Now $33.89   Web pricing policy
BEFORE   $0.00 Now $33.89 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a state-of-the-art cable crafted for system applications, featuring reliable RJ45 connectors with an IP 20 rating This cable adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications, ensuring superior performance With a length of 19 meters, it is constructed from durable PVC for lasting use Engineered to perform in a wide temperature range, this cable can be stored between -40 °C and 80 °C, while operating efficiently at temperatures as low as -40 °C and up to 70 °C.

The interior consists of high-quality stranded tin-plated copper wire organized in a star-quad configuration for optimal signal integrity.

Features and Benefits:

    •Compliant with RoHS standards.

    •Good abrasion resistance.

    •Halogen-free.

    •Flame resistant in accordance with IEC 60332-1 / UL 1685.

Specifications:

 Length 1.9 m
 Diameter of inner sheathing 4.05 mm
 Insulation cross-section 1.5 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Characteristic impedance 100 ± 5 Ω at 100MHz
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Signal propagation time 5.3 ns/m
 Test voltage: wire-wire-shield 2000 V, 50 Hz, 1 min
