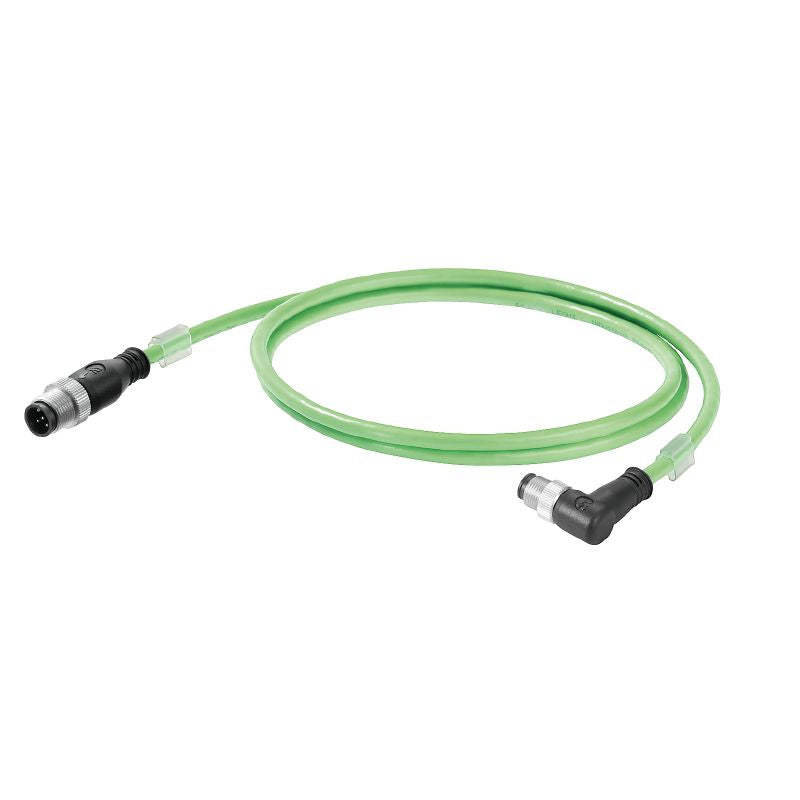

1516430030 - 3m M12 D-Code System Cable, Angled Socket, PVC

1516430030 - 3m M12 D-Code System Cable, Angled Socket, PVC

SKU: 1516430030   Download PDF

Select a Variant:
  • 1516430030 - 3m M12 D-Code System Cable, Angled Socket, PVC
Qty:
Now $55.66   Web pricing policy
BEFORE   $0.00 Now $55.66 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Get connected with this robust system cable, featuring an M12 D-code configuration that includes an angled socket with a straight pin Adhering to Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, this cable is crafted from durable PVC and measures 3 meters in length, making it ideal for a variety of networking needs.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Environmental compliance with REACH.

    •Good abrasion resistance.

    •Halogen-free.

    •Resistant to flame spread following IEC 60332-1 / UL 1685 standards.

Specifications:

 Length 3 m
 Net weight 234 g
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -40 °C...80 °C
 Wire material Stranded tin-plated copper wire
 Characteristic impedance 100 ± 5 Ω at 100MHz
 Operating voltage (UL rating) 600 V
 Loop resistance 120 Ω/km
 Signal propagation time 5.3 ns/m
 Diameter of inner sheathing 4.05 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing colour green (RAL 6018)
 Standard designations 2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
 Transfer impedance 20 mΩ/m at 10 MHz
 Min. bending radius, once only 3.5 *diameter
 Min. bending radius, repetitive 7.5 x cable diameter
