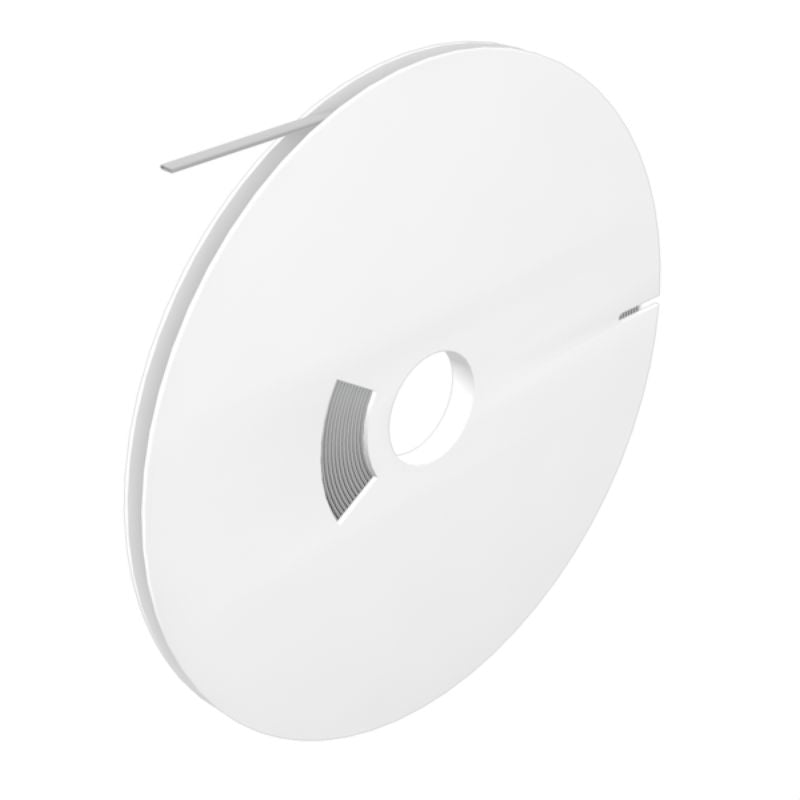

1513250000 - RoHS Compliant White Cable Marker 1.6-3.2mm with External Holder

1513250000 - RoHS Compliant White Cable Marker 1.6-3.2mm with External Holder

SKU: SKU: 1513250000 Download PDF

Variant:
  • 1513250000 - RoHS Compliant White Cable Marker 1.6-3.2mm with External Holder
Regular price Now $106.22
Regular price BEFORE   $0.00 Sale price Now $106.22
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile conductor and cable marker, meticulously crafted to fit a range of dimensions from 16 mm to 32 mm This marker features a clean white color and is fully compliant with RoHS standards, making it an excellent choice for diverse applications With a temperature tolerance spanning from -55°C to 105°C, it can withstand a variety of environments Weighing in at 221 grams, it comes conveniently packaged on a roll, with one unit available for purchase.

For optimal use, an external roll holder (Article 1302920000) is required Ensure compatibility by using this product with printers such as THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK to achieve high-quality printing results.

Features and Benefits:

    •Compatible with various THM printers.

    •Made of polyolefine material.

    •Non-halogenated.

    •2:1 shrink rate.

    •Requires external roll holder for use.

Specifications:

 Depth 0.7 mm
 Width 5.6 mm
 Length 30,000 mm
 Operating temperature range -55...105 °C
 Conductor cross-section, min. 0.5 mm²
 Conductor cross-section, max. 1.5 mm²
 Conductor O.D., min. 1.6 mm
 Conductor O.D., max. 3.2 mm
 Recommended shrinking temperature 90 °C
 Number per roll 1
