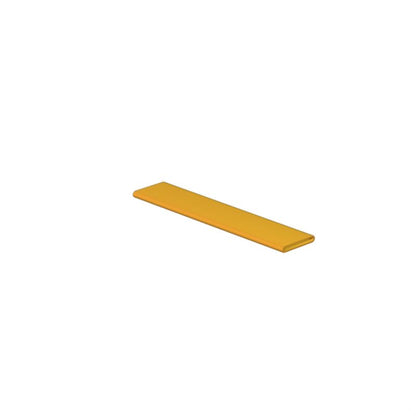

1513180000 - Yellow Cable Marking Sleeves, 3.2-6.4mm, Polyolefine Material

1513180000 - Yellow Cable Marking Sleeves, 3.2-6.4mm, Polyolefine Material

SKU: 1513180000   Download PDF

Select a Variant:
  • 1513180000 - Yellow Cable Marking Sleeves, 3.2-6.4mm, Polyolefine Material
Qty:
Now $149.56   Web pricing policy
BEFORE   $0.00 Now $149.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the HSS-HF 32-64 EL Y30M, an excellent choice for marking conductors and cables This product boasts a vibrant yellow finish and accommodates a diameter range of 32 mm to 64 mm It is both RoHS compliant and halogen-free, made from durable polyolefine material With an operating temperature capability between -55°C and 105°C, it's well-suited for a variety of applications that demand reliable cable identification.

Features and Benefits:

    •Yellow color.

    •RoHS compliant.

    •Halogen-free.

    •Suitable for THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •Rate of shrinkage is 2:1.

    •Recommended shrinking temperature of 90°C.

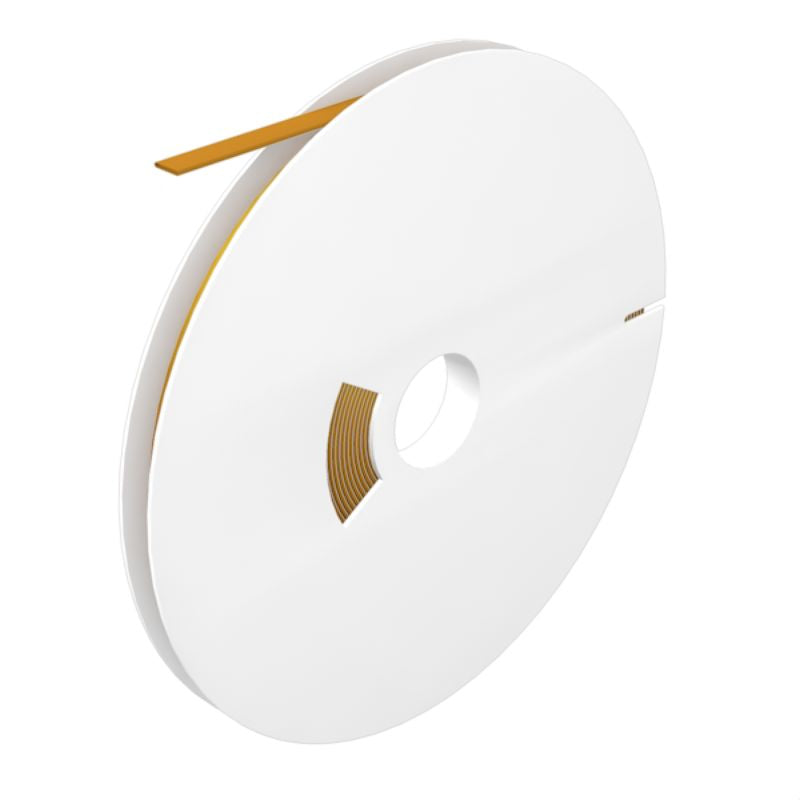

    •External roll holder 1302920000 is necessary.

    •Cable and conductor marking.

Specifications:

 Conductor O.D. 3.2 - 6.4 mm
 Conductor cross-section, max. 6 mm²
 Conductor cross-section, min. 1.5 mm²
 Basic material Polyolefine
 Length 30,000 mm
 Width 10.7 mm
 Depth 0.9 mm
 Operating temperature range -55...105 °C
 Number per roll 1
 Max operating temperature 105 °C
 Min operating temperature -55 °C
 Cross-section for connected wire 1.5 - 6 mm²
 Printed characters without
 Type of printing neutral
