1512470020 - 2m PVC LiYY Cable for Digital Signal Transmission

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

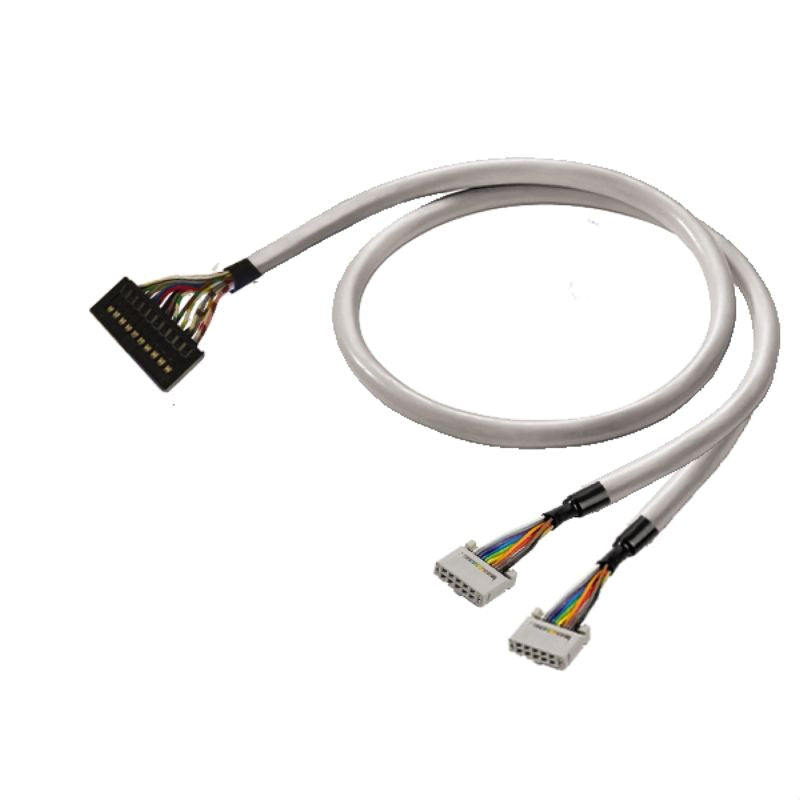

Enhance your digital connectivity with the PAC-PREM-2X10-V1-2M pre-assembled cable Crafted from durable PVC, this cable is ideal for efficient digital signal transmission It boasts a robust LiYY construction with an outer diameter measuring 54 ± 1 mm and stretches to a convenient length of 2 meters The PLC side features an HE10 20P connector, while the other end is equipped with two HE10 10P connectors, each containing a minimum of 10 pins, ensuring reliable performance and compatibility in your setups.

Features and Benefits:

•Suitable for digital signals.

•Net weight is 165g.

•Storage temperature range: -10 to 60 °C.

•Operating temperature range: -10 to 50 °C.

•RoHS compliant.

•No SVHC above 0.1 wt%.

•Wire cross-section of 0.14 mm².

•Capacity of 300 pF/m.

•High voltage test rating of 1 KV for 1s.

•Maximum current strength of 1 A per path.

•Resistance of ≤ 150 mΩ/m.

•Maximum total current of 3 A.

Specifications:
