1512230050 - 5m PVC PAC Cable with HE10 Connectors, 0.25mm²

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

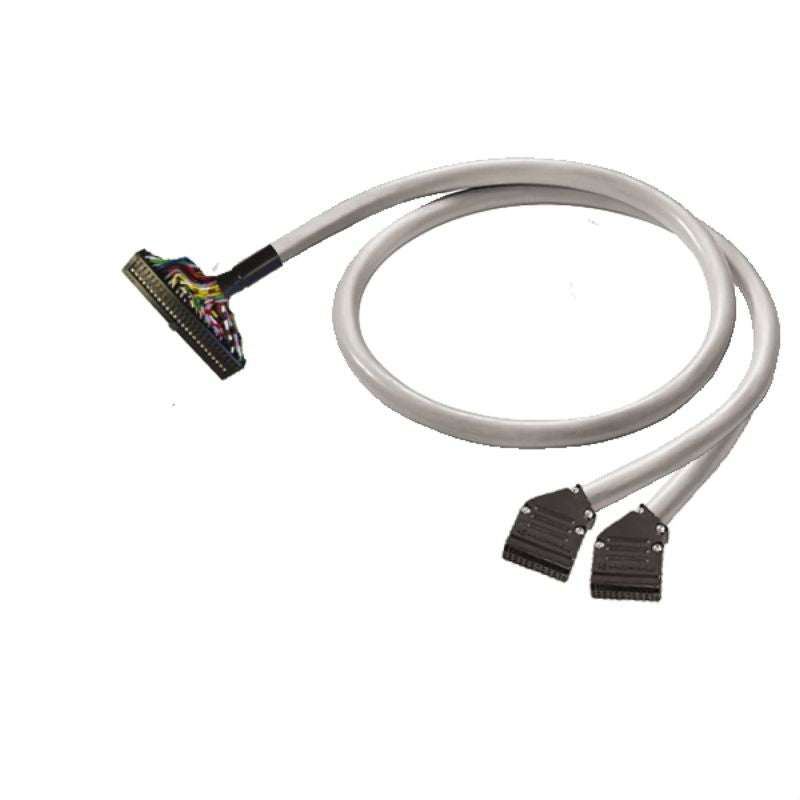

Introducing the pre-assembled PAC cable model PAC-YOKO-HE20-V0-5M, perfect for a variety of digital signal applications Crafted from durable PVC, this cable spans approximately 5 meters in length and features a wire cross-section of 025 mm² On one end, you’ll find a HE10 50 P connector, while the other end is equipped with a 2X flat cable connector HE10 20P With an outer diameter of approximately 8.

6 ± 1 mm, this cable strikes the ideal balance between flexibility and strength for your connectivity needs.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for transmitting digital signals.

•Capable of carrying a maximum current strength of 1 A per path.

•Rated voltage up to ≤ 60 Vdc and ≤ 25 Vac.

•High voltage test rating of 1 KV for 1 second.

Specifications:
