1511920010 - 1m PVC Pre-assembled Cable, 5.4mm Diameter

1511920010 - 1m PVC Pre-assembled Cable, 5.4mm Diameter

SKU: SKU: 1511920010   Download PDF

Select a Variant:
  • 1511920010 - 1m PVC Pre-assembled Cable, 5.4mm Diameter
Qty:
Regular price Now $88.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $88.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

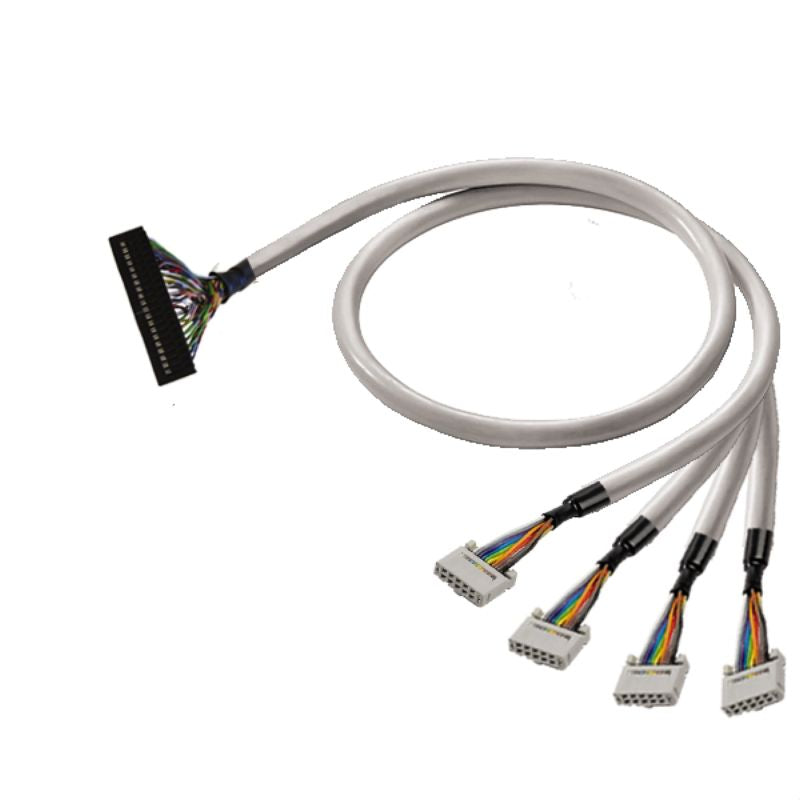

Introducing a pre-assembled cable, identified by the part number PAC-CMLX-4X10-V2-1M Crafted from standard PVC material, this cable boasts an outer diameter of 54 ± 1 mm and stretches a full meter in length It is specifically designed for the transmission of digital signals, with a wire cross-section measuring 014 mm², ensuring reliable connectivity for your electronic needs.

Features and Benefits:

    •Compliant with RoHS including exemption 6c.

    •Suitable for digital signal applications.

    •Connector on the PLC side is HE10 40P.

    •Includes interface connector with 4xHE10 10P.

    •Can handle a maximum permissible current strength of 1 A.

Specifications:

 Storage temperature -10...60 °C
 Operating temperature -10...50 °C
 Basic material PVC
 Cable Cable LiYY
 Number of poles, min. 10-pole
 Electrical capacity wire / wires 300 pF/m
 High voltage test 1 KV/1s
 Rated voltage ≤ 60 V DC ≤ 25 V AC
 Resistance ≤ 150 mΩ/m
 Total current, max. 3 A
 GTIN (EAN) 4032248303960
 ETIM classification EC000237
 ECLASS classification 27-24-22-20
