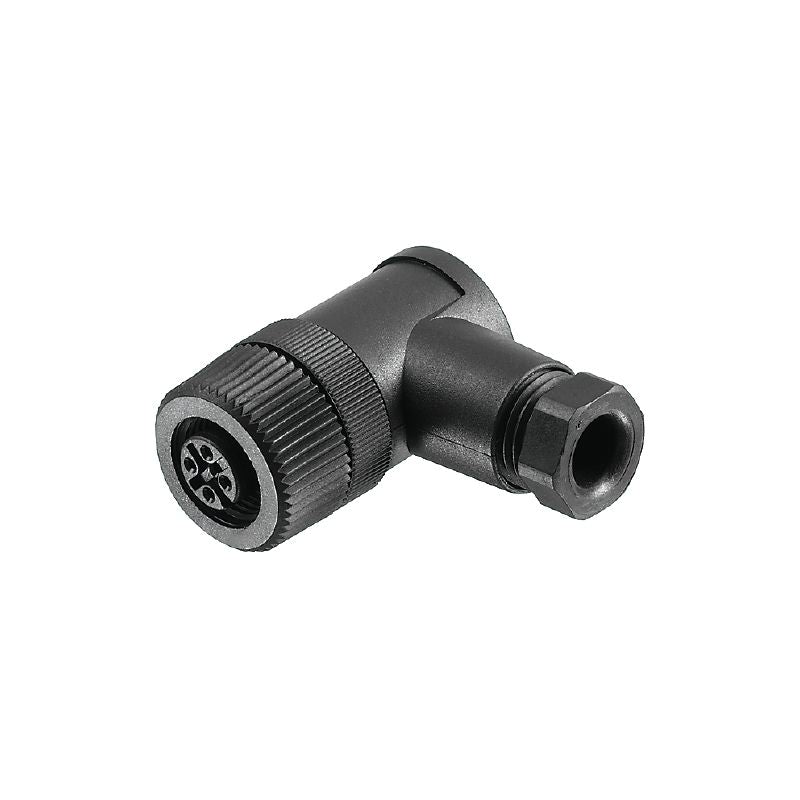

1481140000 - M12 A-Coded Female Connector, 6-8mm Cable Diameter, IP67

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, specifically crafted with an A-coded design to accommodate cable diameters between 6 mm and 8 mm This reliable female connector is constructed from robust PA material, ensuring a strong and long-lasting connection It supports conductor cross-sections ranging from 014 mm² to 075 mm², with a nominal current capacity of 4 A and a nominal voltage rating of 250 V, complemented by an impressive insulation resistance of 10^8 Ω.

With an IP67 rating, this connector is highly resistant to dust and water, making it suitable for challenging environments Additionally, it is engineered to endure a minimum of 50 plugging cycles and complies with multiple standards, including IEC 61076-2-101, and is classified under various ETIM and ECLASS categories.

Features and Benefits:

•A-coded design.

•Made of durable PA material.

•IP67 protection degree.

•Supports up to 50 plugging cycles.

Specifications:
