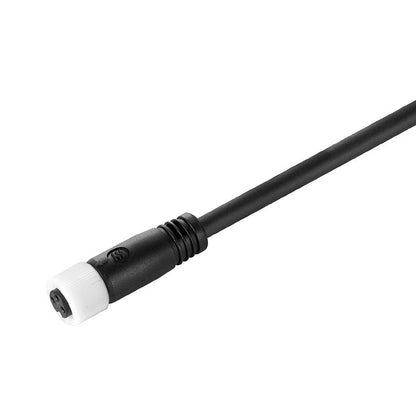

1465880150 - 1.5m M8 4-Pole Sensor/Actuator Cable - PVC Sheath

1465880150 - 1.5m M8 4-Pole Sensor/Actuator Cable - PVC Sheath

SKU: SKU: 1465880150

Select a Variant:
  • 1465880150 - 1.5m M8 4-Pole Sensor/Actuator Cable - PVC Sheath
Qty:
Regular price Now $14.10   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $14.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the sensor/actuator line, featuring a versatile configuration designed without a connector on one end This M8 model boasts 4 poles and includes a generous 15-meter cable The straight-layout female socket ensures easy connectivity, while the absence of shielding and LED adds simplicity to its design Crafted from halogen-free PVC, the sheath guarantees safety and performance Perfect for various applications where reliability is key.

Features and Benefits:

    •Cable length of 1.5 meters.

    •Four-pole configuration.

    •Sheath material is PVC.

    •Halogen-free material.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Outer diameter 4.8 mm ± 0.2 mm
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Contact surface Gold-plated
 Housing main material PUR
 Threaded ring material POM
 Tightening torque M8: 0.5 - 0.6 Nm

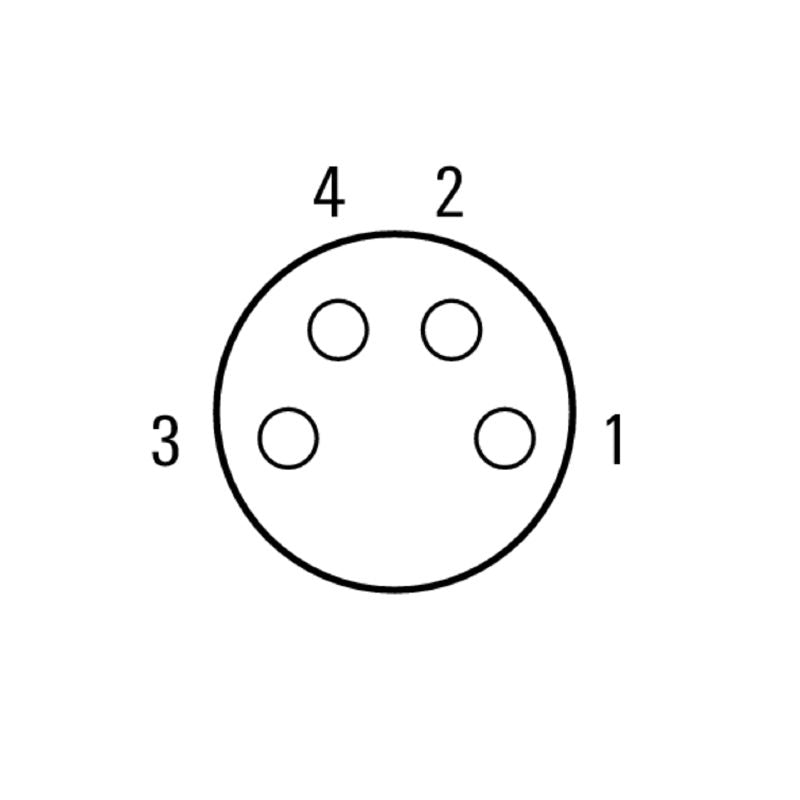

 Plug type M8, IP69, female contact, straight, Plastic, unshielded
 Plug right free conductor end
