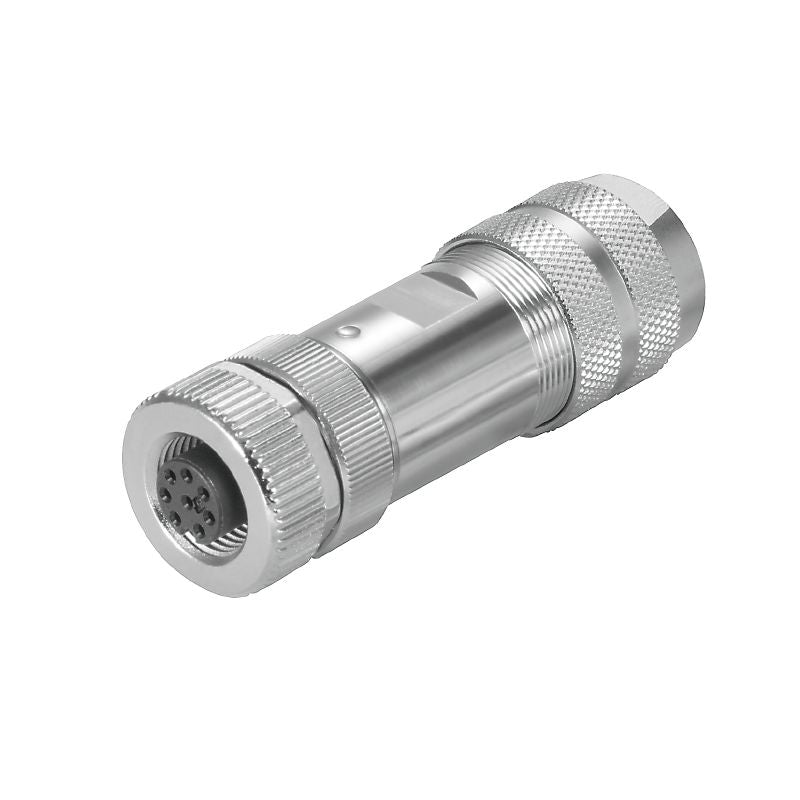

1423540000 - IP67 Female Connector with 8 Poles, 4-6mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIBM-8/7S-M12 field attachable connector, engineered for versatility and compliance with industry standards, including RoHS regulations This connector is designed to accommodate cable diameters ranging from 4 mm to 6 mm, providing flexibility for various applications Featuring a female contact that seamlessly accepts conductor cross-sections between 014 mm² and 05 mm², it guarantees efficient electrical connectivity thanks to its gold-plated contact surface.

Constructed from durable CuZn material, the connector housing ensures long-lasting performance Capable of handling a nominal current of 2 A at 60 V, it boasts 8 poles for multiple connection possibilities Built to withstand at least 100 plugging cycles, this connector is reliable for repeated use With an IP67 protection rating, it is well-suited for demanding environments The diecast zinc threaded ring adds an extra layer of security to your connections.

Features and Benefits:

•RoHS compliant.

•Gold-plated contact surface.

•Maximum cable diameter of 6 mm.

•Minimal cable diameter of 4 mm.

•Designed for at least 100 plugging cycles.

•Protection degree of IP67.

Specifications:
