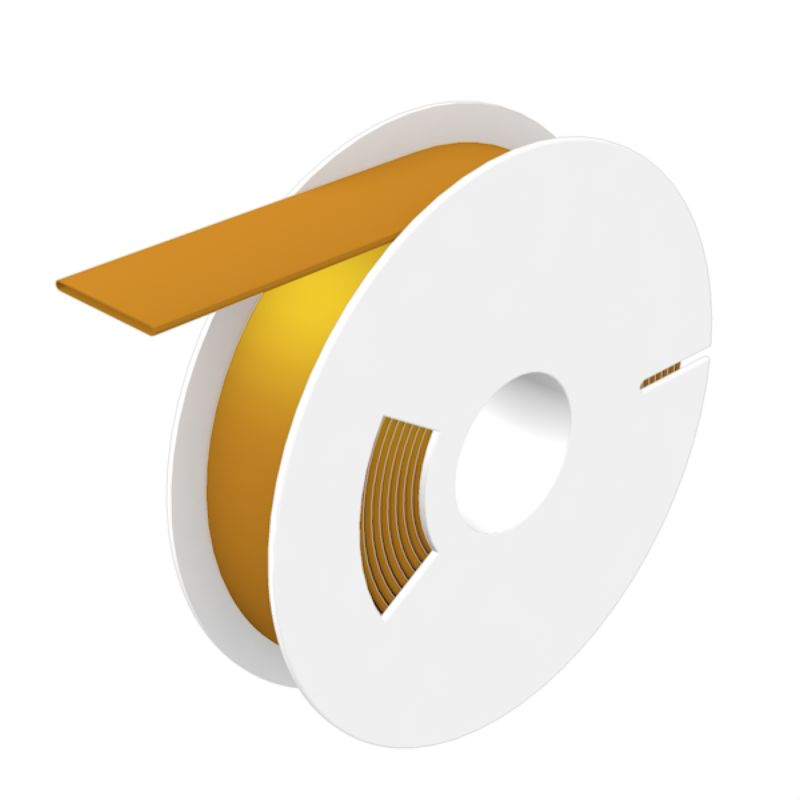

1423280000 - 10m Yellow Cable Marker for 9.5-19.1mm Conductors

1423280000 - 10m Yellow Cable Marker for 9.5-19.1mm Conductors

SKU: SKU: 1423280000 Download PDF

Variant:
  • 1423280000 - 10m Yellow Cable Marker for 9.5-19.1mm Conductors
Regular price Now $110.13
Regular price BEFORE   $0.00 Sale price Now $110.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure clear organization with the HSS-HF 95-191 EL Y10M conductor and cable marker Designed to fit conductors with an outer diameter between 95 mm and 191 mm, this marker is crafted from durable polyolefine and comes in a vibrant yellow, making it easily identifiable With a generous length of 10,000 mm, it is suitable for various applications and reliable in extreme temperatures, ranging from -55 to 105 °C.

Additionally, this product complies with RoHS standards, confirming its environmental safety.

Features and Benefits:

    •Compliant with RoHS standards.

    •Color-coded for easy identification.

    •Operates effectively in a temperature range of -55 to 105 °C.

    •Made from durable polyolefine.

    •Rate of shrinkage is 2:1.

    •Recommended shrinking temperature of 90 °C.

Specifications:

 Depth 1.5 mm
 Width 30.9 mm
 Length 10,000 mm
 Conductor O.D. 9.5 - 19.1 mm
 Conductor cross-section, max. 70 mm²
 Conductor cross-section, min. 16 mm²
 Cross-section for connected wire 16 - 70 mm²
 Number per roll 1
 Printed characters without
 Type of printing neutral
 Halogen No
 Operating temperature range, max. 105 °C
 Operating temperature range, min. -55 °C
 Text field height 30.7 mm
 Text field width 0 mm
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
