1382980300 - 3m M8 Sensor/Actuator Cable, 3 Poles, Open End

1382980300 - 3m M8 Sensor/Actuator Cable, 3 Poles, Open End

SKU: SKU: 1382980300

Select a Variant:
  • 1382980300 - 3m M8 Sensor/Actuator Cable, 3 Poles, Open End
Qty:
Regular price Now $7.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

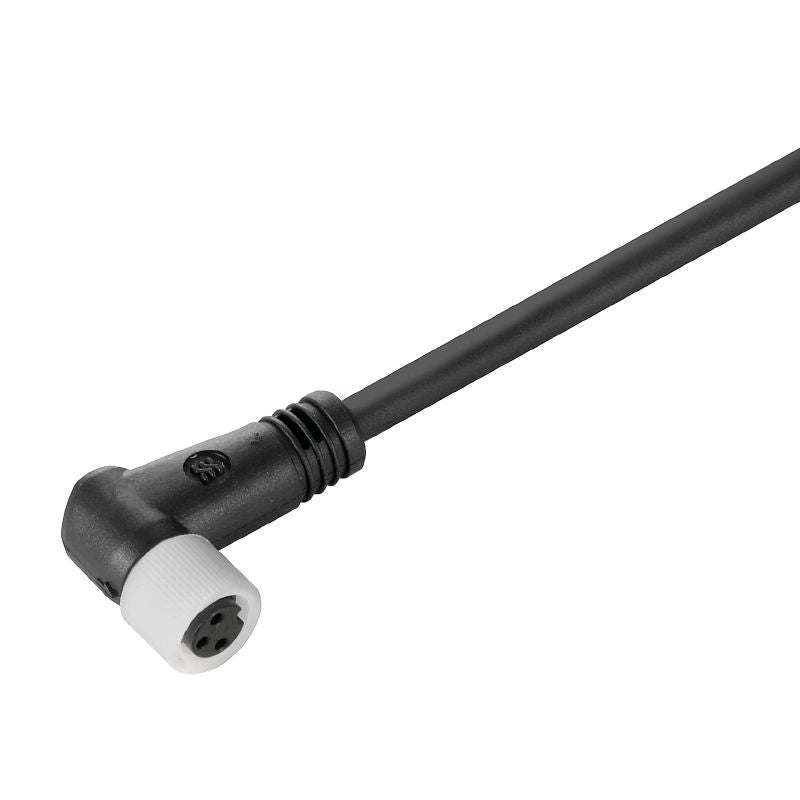

Introducing an M8 type sensor and actuator product, measuring 3 meters in length This design features a 3-pole setup with one end that is unconnected The socket is angled and made from durable halogen-free PUR material Please note that it does not include shielding or an integrated light-emitting diode (LED) Perfect for various applications requiring reliable connectivity and flexibility.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Hydrolysis and microbe resistant.

    •Gold-plated contact surface.

    •IP65, IP66, IP67, and IP68 protection degrees when screwed in.

    •Angled socket version.

Specifications:

 Cable length 3 m
 Core cross-section 0.25 mm²
 Outside diameter 4.1 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Bending cycles 12 Mio
 Plugging cycles ≥ 100
 Resistance to oils in accordance with IEC 60811:404
 Resistance to spread of flame in accordance with IEC 60332-2-2
 Housing main material PUR
 Version Socket, angled
