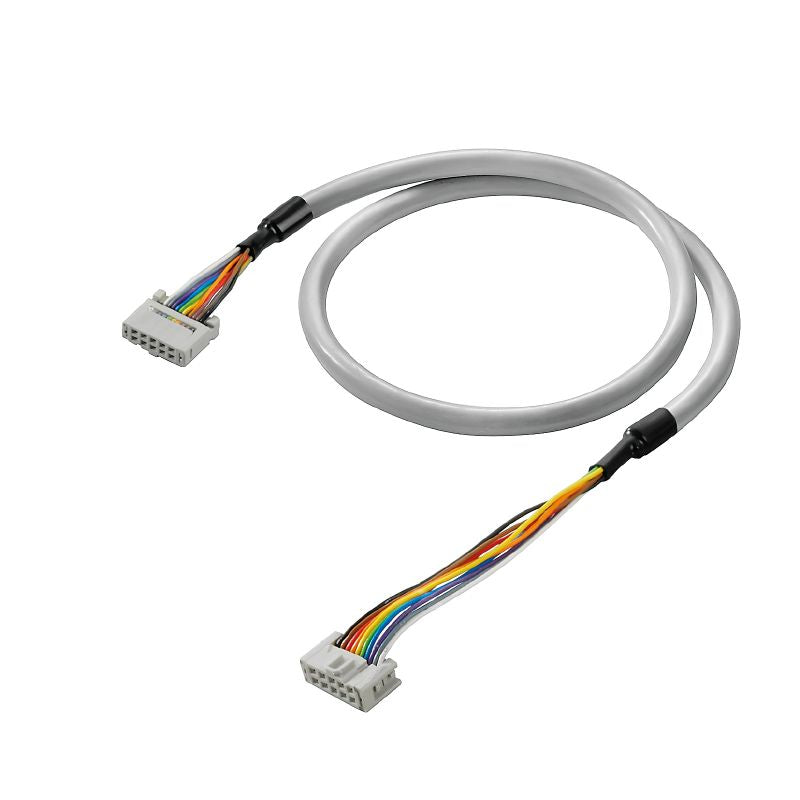

1349670035 - 3.5m PVC Digital Signal Cable with 20-Pole Connectors

SKU: SKU: 1349670035 Download PDF

Select a Variant:

1349670035 - 3.5m PVC Digital Signal Cable with 20-Pole Connectors

SET THE QTY:

Now $84.99 Web pricing policy

~~BEFORE $0.00~~ Now $84.99 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PAC-UNIV-HE20-HE20-3M5, an expertly crafted pre-assembled cable that spans 35 meters in length This cable is tailored for efficient digital signal transmission, featuring a 20-pole flat connector at both ends Constructed from durable PVC, it boasts a wire cross-section of 014 mm² and has an outer diameter of 86 ± 1 mm, ensuring reliable performance and longevity for your connections.

Features and Benefits:

•Suitable for digital signals.

•RoHS compliant.

•Operating voltage up to 60 V DC.

•Maximum current capacity of 3 A.

Specifications:

Operating temperature	-10 to 50 °C
Storage temperature	-10 to 60 °C
Electrical capacity wire/shield	300 pF/m
Electrical capacity wire/wires	300 pF/m
Permissible current strength per path, max	1 A
Rated voltage	≤ 60 V DC ≤ 25 V AC
Resistance	≤ 150 mΩ/m
General material	PVC
Total current, max	3 A
GTIN (EAN)	4032248373802
Order No.	1349670035
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
