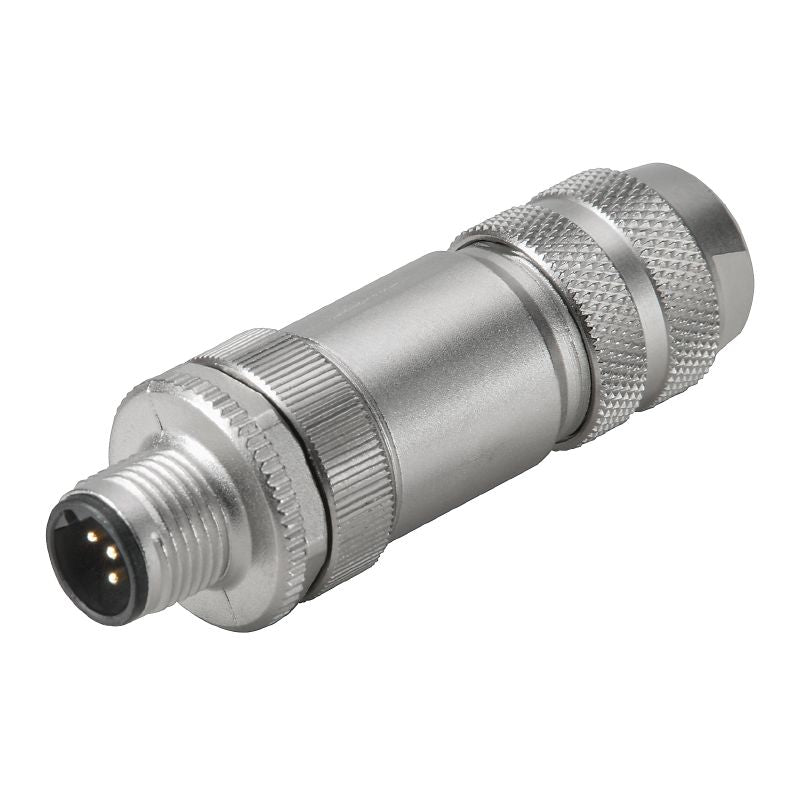

1258940000 - Durable M12 Field Attachable Connector for 6-8mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a durable M12 field-connectable connector featuring a male contact made from CuZn material This versatile connector is suitable for cables with diameters between 6 mm and 8 mm and supports conductor cross-sections from 014 mm² to 05 mm² Designed for efficiency, it boasts a gold-plated finish and is rated for a maximum current of 2A and a voltage up to 60V With an impressive insulation resistance of 10^8 Ω and an IP67 protection rating, this connector is both dust-tight and resilient in water immersion.

It operates effectively in temperatures ranging from -40 to +85 °C and is engineered to endure at least 100 plugging cycles, making it a reliable choice for various applications.

Features and Benefits:

•Gold-plated contact surface.

•Suitable for a wide cable diameter range of 6 to 8 mm.

•High insulation resistance.

•IP67 protection rating.

•Strong resistance to extreme temperatures.

•Screw connection type.

Specifications:
