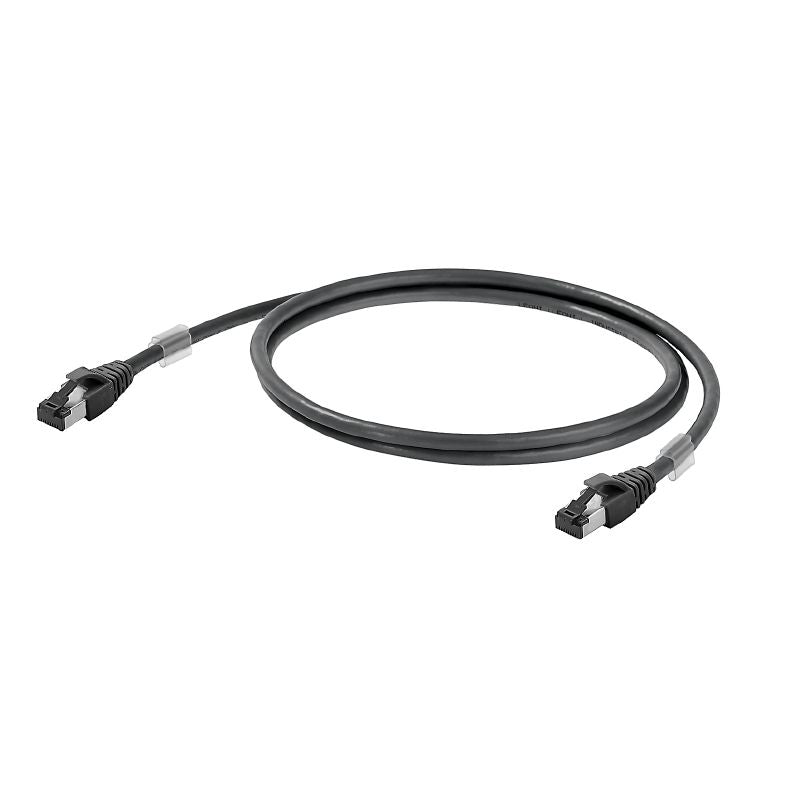

1251610015 - 1.5m Cat.6A RJ45 Patch Cable with IP 20 Rating

1251610015 - 1.5m Cat.6A RJ45 Patch Cable with IP 20 Rating

SKU: 1251610015   Download PDF

Select a Variant:
  • 1251610015 - 1.5m Cat.6A RJ45 Patch Cable with IP 20 Rating
Qty:
Now $7.52   Web pricing policy
BEFORE   $0.00 Now $7.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Ensure reliable connectivity with this RJ45 patch cable, featuring a length of 15 meters Classified under IP 20, it is ideal for connections up to 20 meters as a Cat6A cable For extended lengths beyond 20 meters, this cable meets the Class EA standards set forth by ISO/IEC 11801 (2010) Crafted from LSZH material, it combines performance with safety in mind.

Features and Benefits:

    •Compliant with RoHS regulations without exceptions.

    •Connection standards according to IEC 60603-7-51.

    •Halogen-free construction as per IEC 60754-2.

Specifications:

 Length 1.5 m
 Current-carrying capacity at 50 °C 1 A
 Operating voltage 50 V DC
 Category <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Transmission rate 10 Gbit/s
 Temperature range (Storage) -20 °C to 60 °C
 Temperature range (Operating) -20 °C to 60 °C
 Temperature range (Installation) 0 °C to 50 °C
 Sheath diameter (max) 5.9 mm
 Sheath diameter (min) 5.5 mm
 Shielding S/FTP
 Wire pair shielding Aluminium foil
 Capacity at 1 kHz 46 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Coupling attenuation up to 1000 MHz 80 dB
 Delay skew 2.5 ns/100m
 Test voltage (wire-wire-shield) 2.5 kV / DC for 2 sec
