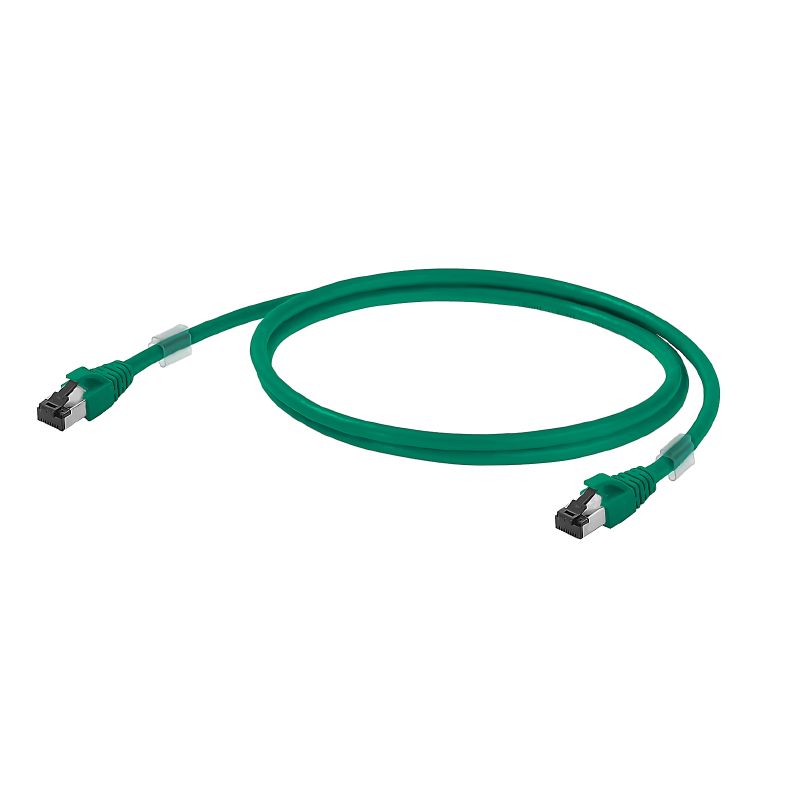

1251590040 - 4m Category 6A RJ45 Patch Cable for IP20 Use

1251590040 - 4m Category 6A RJ45 Patch Cable for IP20 Use

SKU: 1251590040   Download PDF

Select a Variant:
  • 1251590040 - 4m Category 6A RJ45 Patch Cable for IP20 Use
Qty:
Now $13.25   Web pricing policy
BEFORE   $0.00 Now $13.25 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your networking setup with this 4-meter patch cable, equipped with an RJ45 connector suitable for IP20 applications It adheres to Category 6A standards for lengths under 20 meters and surpasses Class EA requirements for longer distances, following ISO/IEC 11801 2010 guidelines Crafted from LSZH materials, this cable offers superior safety and efficiency for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS without exceptions.

    •Halogen-free according to IEC 60754-2.

    •Cable sheath is made from LSZH materials.

    •RJ45 connectors are IP20 rated and plastic shielded.

    •Twisted pair arrangement for effective communication.

Specifications:

 Length 4 m
 Length (inches) 157.48 inch
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Current-carrying capacity at 50 °C 1 A
 PoE / PoE+ conforming to IEEE 802.3at
 Application-specific communication cable facilities ANSI / TIA / EIA-568-B.2-10
 Certificate no. (cULus) E316369
 Connector standard IEC 60603-7-51
 Arrangement of wire cores Twisted pair
 Complete shielding Shielding braid made from copper wiring
 Cross-section 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Insulation cross-section 1.04 mm
 Number of wires 8
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Shielding S/FTP
 Wire pair shielding Aluminium foil
 Capacity at 1 kHz 46 nF/km
 Category <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Coupling attenuation up to 1000 MHz 80 dB
 Coupling resistance at 10 MHz / m 5 mΩ
 Delay skew 2.5 ns/100m
 Operating voltage 50 V DC
 Operating voltage (UL rating) 30 V AC / 42.4 V DC
 Resistance differential 5 %
 Separating class according to EN 50174-2 d
 Test voltage: wire-wire-shield 2.5 kV / DC for 2 sec
 Min. bending radius, once only 4 x cable diameter
 Resistance to spread of flame in accordance with IEC 60332-2-2, IEC 60332-1-2, IEC 60332-3-24, UL 2556 (FT1)
