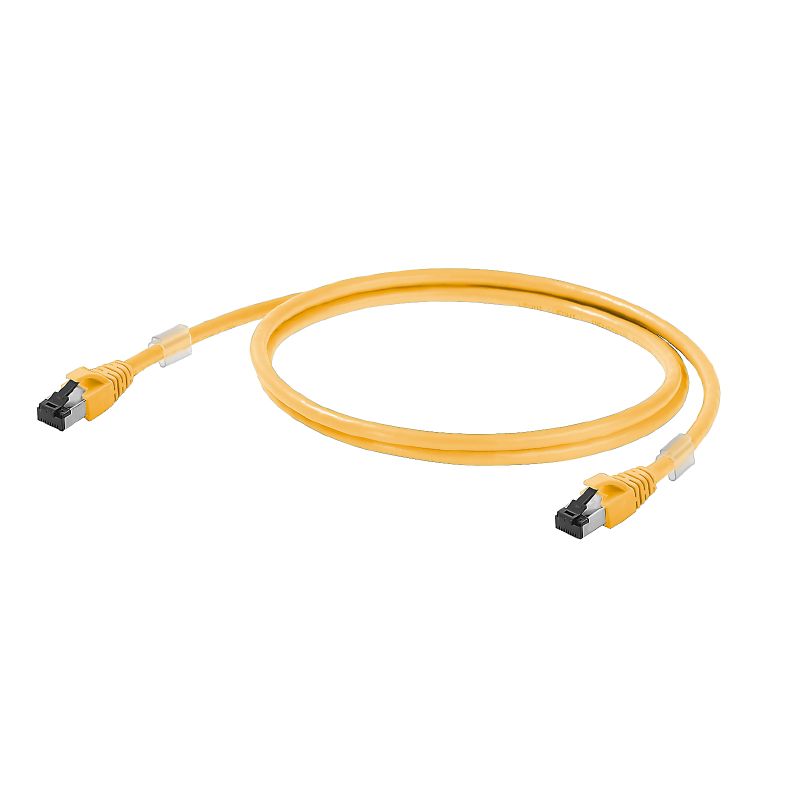

1251580002 - 0.2m LSZH Cat.6A Patch Cable for RJ45 Connections

1251580002 - 0.2m LSZH Cat.6A Patch Cable for RJ45 Connections

SKU: SKU: 1251580002 Download PDF

Variant:
  • 1251580002 - 0.2m LSZH Cat.6A Patch Cable for RJ45 Connections
Regular price Now $4.94
Regular price BEFORE   $0.00 Sale price Now $4.94
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this specialized patch cable, crafted for RJ45 connections and adhering to IP 20 standards Supporting Cat6A specifications for lengths up to 20 meters and compliant with Class EA requirements as per ISO/IEC 11801:2010, this cable guarantees reliable performance At a compact 02 meters in length, it features a low smoke zero halogen (LSZH) jacket for added safety in various environments.

Thoroughly tested for environmental compliance, it is suitable for a wide range of applications, making it an essential addition to your networking toolkit.

Features and Benefits:

    •Compliant with RoHS standards.

    •Halogen-free construction according to IEC 60754-2.

    •1 Gigabit Ethernet support up to 10 Gbit/s transmission rates.

    •Temperature range suitable for storage and operation from -20 °C to 60 °C.

Specifications:

 Length 0.2 m
 Length (inches) 7.874 inch
 Current-carrying capacity at 50 °C 1 A
 Operating voltage 50 V DC
 Insulation PE
 Number of wires 8
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Transmission rate 10 Gbit/s
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Material sheath LSZH
