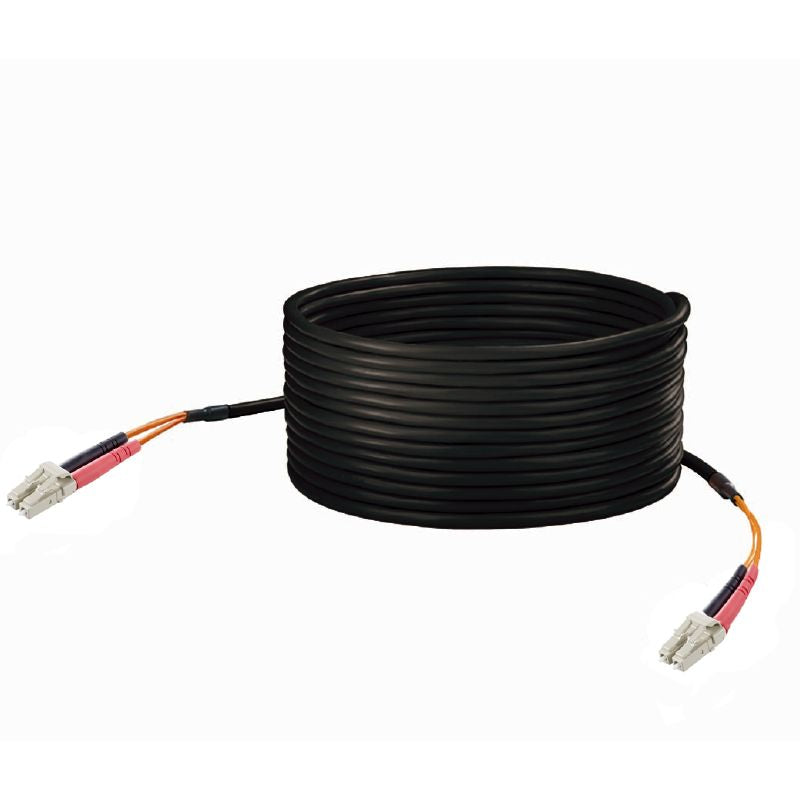

1220930000 - 5m PUR Dragline Cable, LC-Duplex, IP20, 62.5 µm

1220930000 - 5m PUR Dragline Cable, LC-Duplex, IP20, 62.5 µm

SKU: 1220930000   Download PDF

Select a Variant:
  • 1220930000 - 5m PUR Dragline Cable, LC-Duplex, IP20, 62.5 µm
Qty:
Now $89.06   Web pricing policy
BEFORE   $0.00 Now $89.06 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a versatile dragline cable equipped with LC-Duplex connectors and an IP20 rating, making it an excellent choice for various work environments This 5-meter cable is constructed from durable PUR material and features a core diameter of 625 µm It’s engineered for reliable performance, capable of withstanding installation and operation temperatures from -40 °C to 80 °C, ensuring robustness in demanding tasks.

Features and Benefits:

    •RoHS compliant.

    •Bending cycles capacity of 100,000.

    •Break-out dragline cable layout.

Specifications:

 Length: 5 m
 Connector standard: IEC 61754-20
 Fibre type: GOF Multimode OM1
 Attenuation: 2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
 Bandwidth: 200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
 Insertion loss: ≤ 0.4 dB
 Return loss: ≥ 30 dB
 Core diameter: 62.5 µm
 Sheath diameter: 6 mm
 Primary coating: 245 µm
 Min. bending radius, once only: 25 mm
 Min. bending radius, repetitive: 77 mm
 Plug left: LC-Duplex, IP20, male contact, straight, plastic, unshielded
 Plug right: LC-Duplex, IP20, male contact, straight, plastic, unshielded
 Storage temperature: -40 °C...80 °C
 Operating temperature: -40 °C...80 °C
 Installation temperature: -20 °C...60 °C
