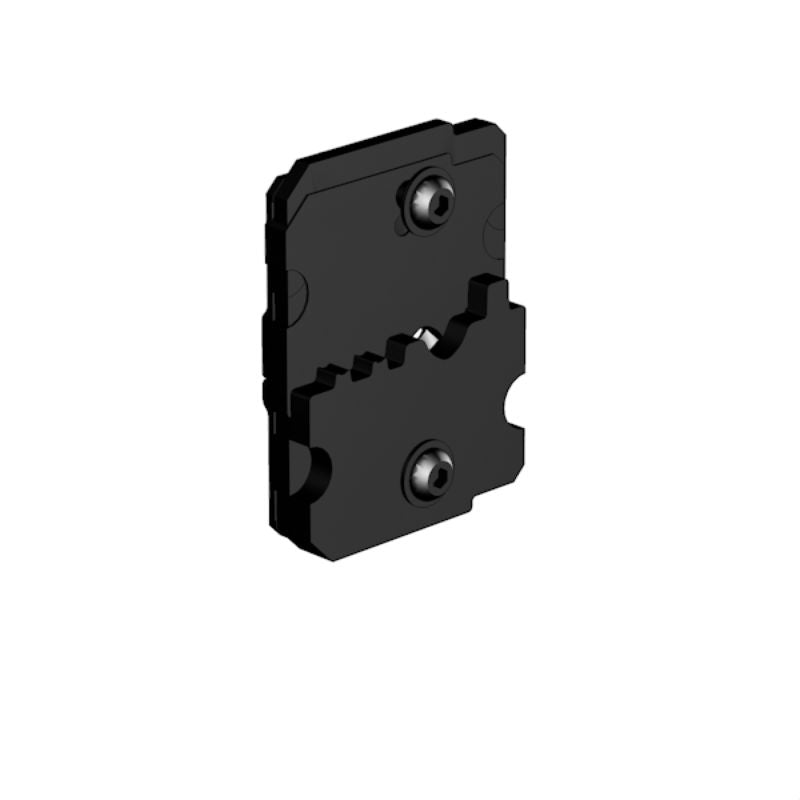

1212770000 - Precision Stripping Tool for POF Fibers and Cables
1212770000 - Precision Stripping Tool for POF Fibers and Cables
SKU: SKU: 1212770000 Download PDF
- 1212770000 - Precision Stripping Tool for POF Fibers and Cables
- 1212770000 - Precision Stripping Tool for POF Fibers and Cables
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the AIE MULTI-STRIPAX POF, a specialized tool crafted for the efficient stripping of POF fibers and cables Engineered to support various conductor cross-sections, this tool incorporates an advanced stripping mechanism that enables accurate handling and removal of optical fibers Its design guarantees reliable performance tailored to specific fiber types and their unique requirements.
Features and Benefits:
•Stripping mechanism for POF fibres and cable.
•Supports conductor cross-section from 2.5 mm² to 10 mm².
•Minimum stripping length of 2 mm.
•Used for stripping POF fibres and cables.
Specifications:
| Depth (mm) | 30 |
| Height (mm) | 3 |
| Width (mm) | 41 |
| Net weight (g) | 75 |
| Conductor cross-section, max. (mm²) | 10 |
| Conductor cross-section, min. (mm²) | 2.5 |
| Stripping length, min. (mm) | 2 |
| Workable cable | POF fibres and cables |
| ETIM 6.0 | EC001509 |
| ETIM 7.0 | EC001509 |
| ETIM 8.0 | EC001509 |
| ETIM 9.0 | EC001509 |
| ETIM 10.0 | EC001509 |
| ECLASS 9.0 | 21-04-92-37 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-92-37 |
| ECLASS 11.0 | 21-04-48-91 |
| ECLASS 12.0 | 21-04-48-91 |
| ECLASS 13.0 | 21-04-48-91 |
| ECLASS 14.0 | 21-04-48-91 |
| ECLASS 15.0 | 21-04-48-91 |
