1211080300 - 30m PROFINET Dragline Cable with M12 D-Code Socket

1211080300 - 30m PROFINET Dragline Cable with M12 D-Code Socket

SKU: 1211080300   Download PDF

Select a Variant:
  • 1211080300 - 30m PROFINET Dragline Cable with M12 D-Code Socket
Qty:
Now $205.73   Web pricing policy
BEFORE   $0.00 Now $205.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

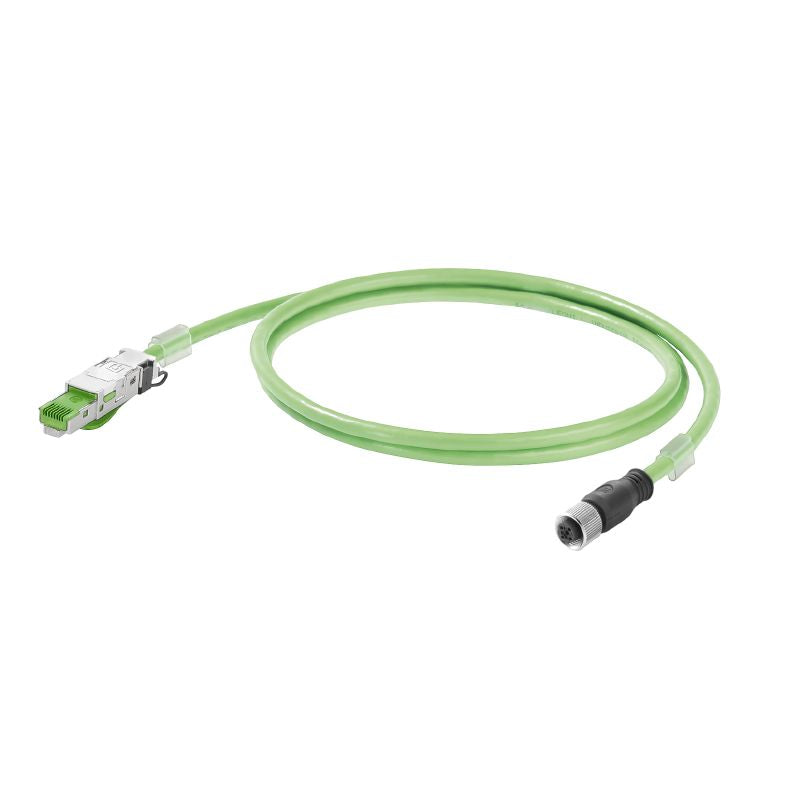

Introducing a specialized Dragline cable tailored for PROFINET applications This robust cable features an M12 D-code straight socket, boasting an impressive IP 67 rating, along with an RJ45 plug rated at IP 20 Compliant with Cat5 standards (ISO/IEC 11801 and TIA T568-B), this cable measures a generous 30 meters in length Crafted from premium PUR material, it promises both durability and reliable performance for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Includes complete shielding with aluminum foil and a copper wiring braid.

    •Halogen-free according to IEC 60754-2.

Specifications:

 Length 30 m
 Length (inches) 1,181.102 inch
 Net weight 1,909.5 g
 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A

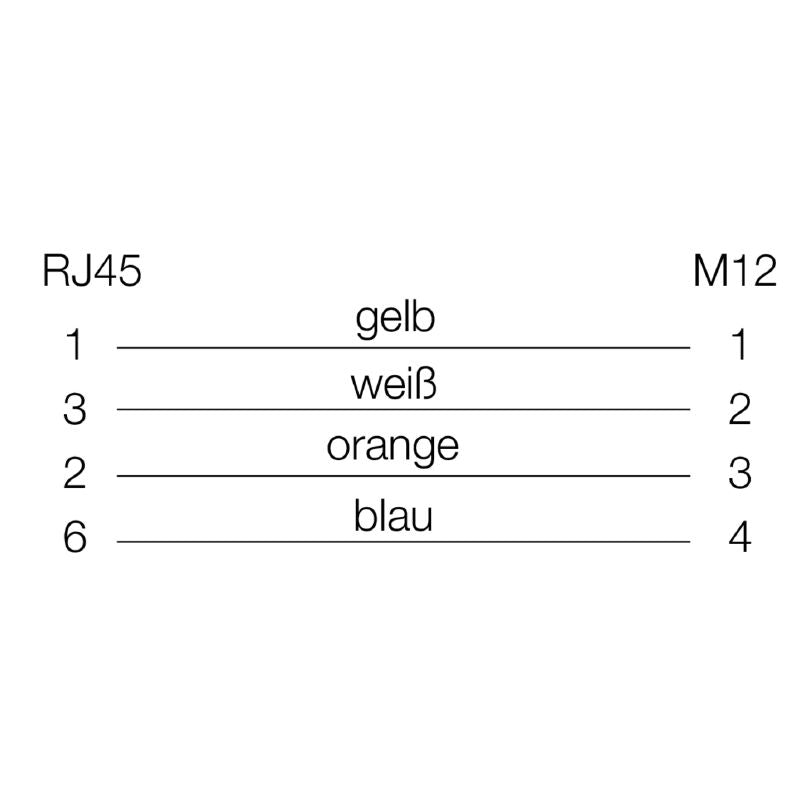

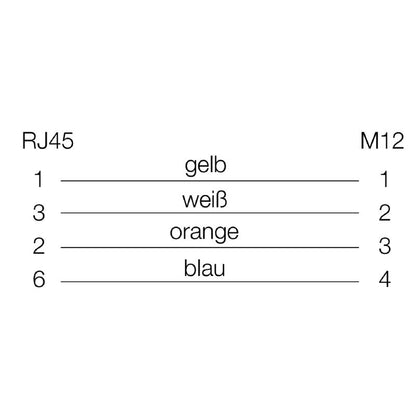

 Arrangement of wire cores Star-quad
 Colour sequence or wires - wire pairs white, yellow, blue, orange
 Complete shielding Aluminium foil
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Diameter of inner sheathing 3.9 mm
 Filler As central element
 Insulation PE
 Insulation cross-section 1.5 mm
 Material sheath PUR
 Number of wires 4
 Overlap of shielding braid 85 %
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 0.9 mm
 Shielding SF/UTP
 Wire core insulation thickness 0.38 mm
 Wire material Stranded tin-plated copper wire
 Capacity at 1 kHz 52 nF/km
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Resistance differential 3 %
 Signal propagation time 5.3 ns/m
 Speed 180 m/min
 Test voltage: wire-wire-shield 2000 V eff, 50 Hz, 1 min
 Transfer impedance 20 mΩ/m at 10 MHz
 Abrasion resistance very good
 Acceleration 4 m/s²
 Bending cycles 3 Mio
 Fire propagation No
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Pulling force ≤ 150 N
 Resistance to oils in accordance with IEC 60811-2-1
 Resistance to spread of flame in accordance with IEC 60332-1
 Silicone-free Yes
 UV-resistant Yes

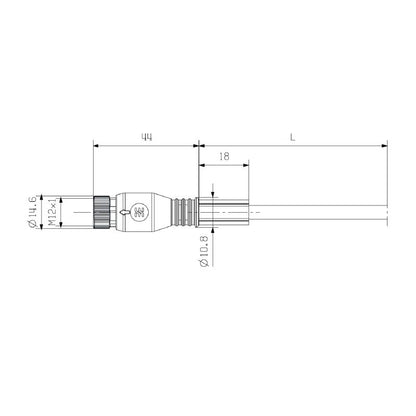

 Plug left M12, IP67, female contact, straight, plug, Plastic, shielded

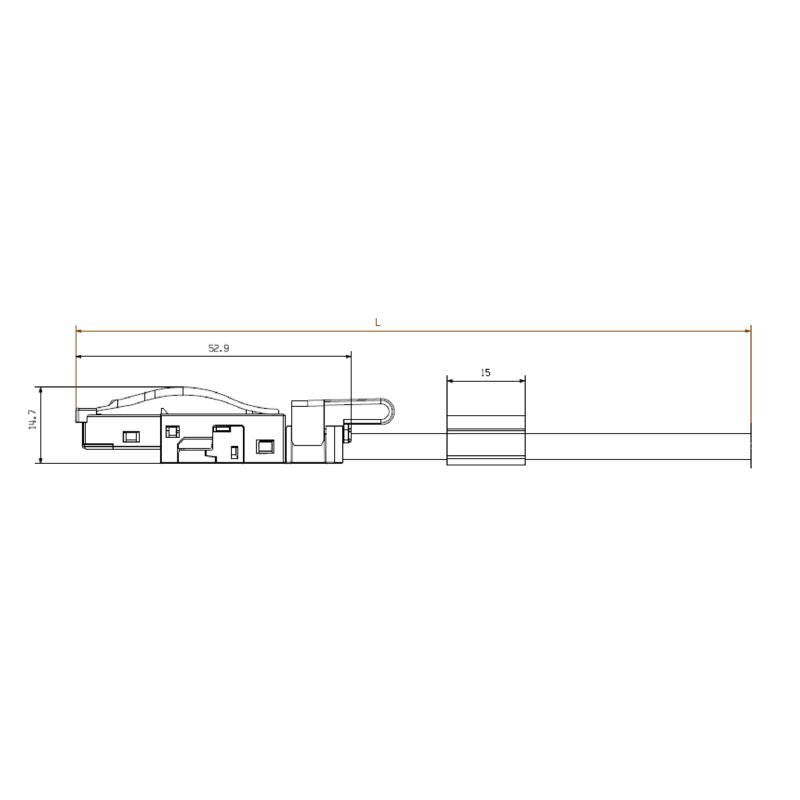

 Plug right RJ45, IP20, male contact, straight, plug, Plastic, shielded
 Classifications ETIM and ECLASS standards listed
