1211080057 - 5.7m PROFINET Dragline Cable with M12 D-Code Socket

1211080057 - 5.7m PROFINET Dragline Cable with M12 D-Code Socket

SKU: 1211080057   Download PDF

Select a Variant:
  • 1211080057 - 5.7m PROFINET Dragline Cable with M12 D-Code Socket
Qty:
Now $80.33   Web pricing policy
BEFORE   $0.00 Now $80.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

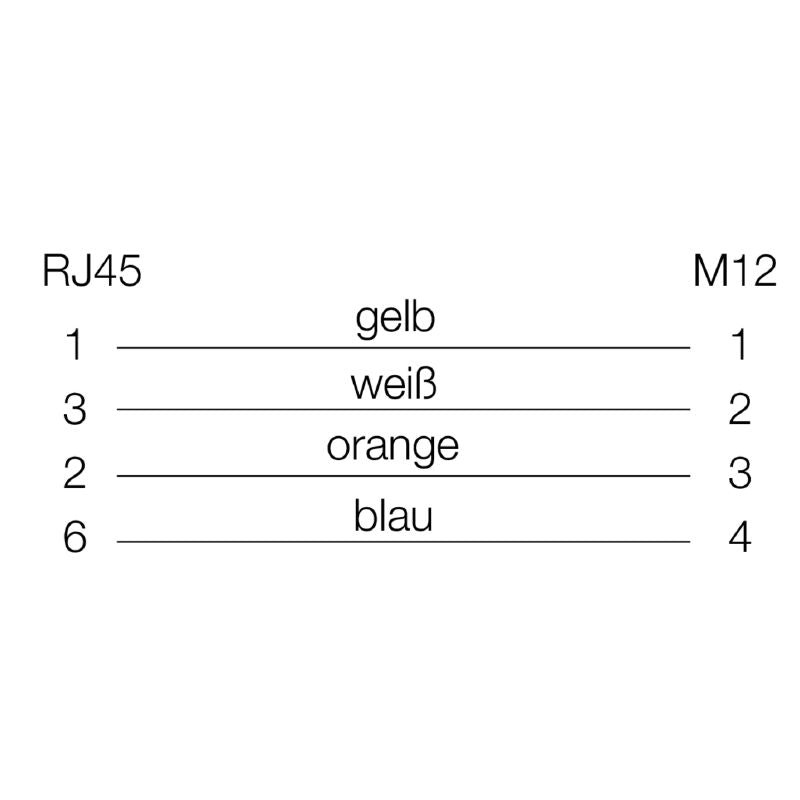

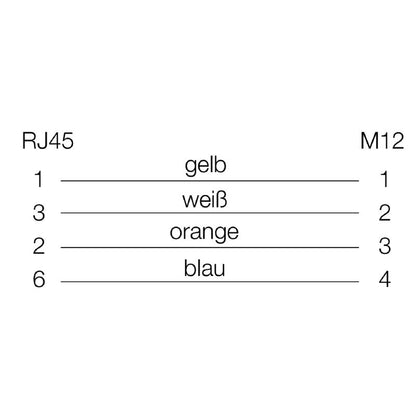

Introducing a robust dragline cable tailored specifically for PROFINET applications This cable boasts an M12 D-code straight socket that meets the IP 67 standard, ensuring excellent protection against dust and water Additionally, it features an RJ45 connector rated at IP 20, providing reliable connectivity Compliant with Cat5 and Cat5e specifications (ISO/IEC 11801 / TIA T568-B), it is built with a durable PUR sheath to withstand demanding conditions.

With an overall length of 57 meters, this cable is a dependable choice for various connectivity needs.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Halogen-free according to IEC 60754-2.

    •UV-resistant.

    •Excellent abrasion resistance.

    •Resistant to oils per IEC 60811-2-1.

    •Signal propagation time of 5.3 ns/m.

    •Low transfer impedance of 20 mΩ/m at 10 MHz.

Specifications:

 Length 5.7 m
 Weight 400 g
 Operating Voltage (UL Rating) 600 V
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Operating Temperature -40 °C to 70 °C
 Storage Temperature -50 °C to 70 °C
 Shielding SF/UTP
 Max Sheath Diameter 6.7 mm
 Min Bending Radius 5 x cable diameter
 Fire Propagation No
 Signal Propagation Time 5.3 ns/m
